61 31 299 Removing and installing/replacing clutch switch module

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

NOTE: Clutch master cylinder (2) is removed for purposes of clarity.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Unlock plug (4) and disconnect from housing (3).

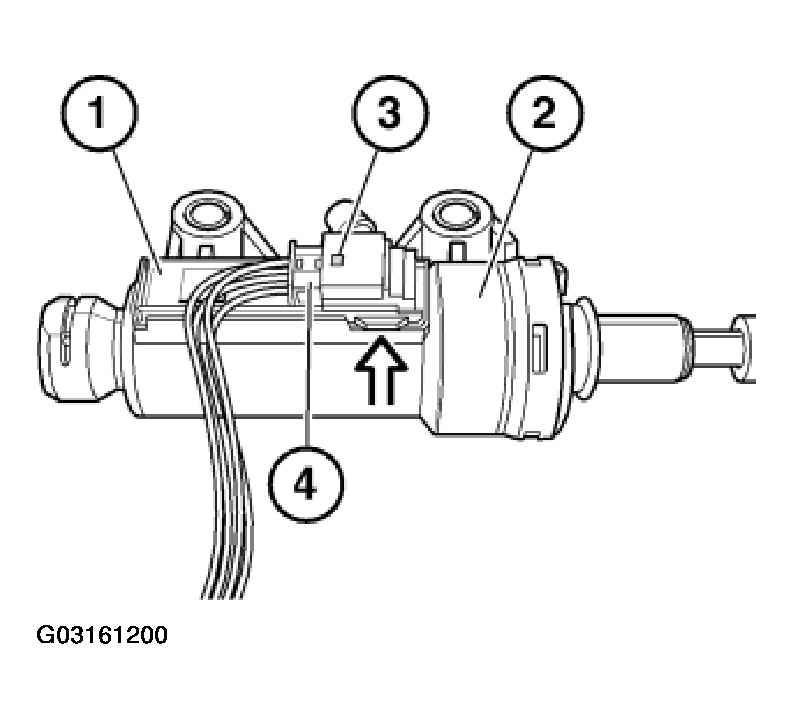

Fig 1: Removing Clutch Switch Module From Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clutch switch module is protected against incorrect installation.

Clutch switch module must snap audibly into place.

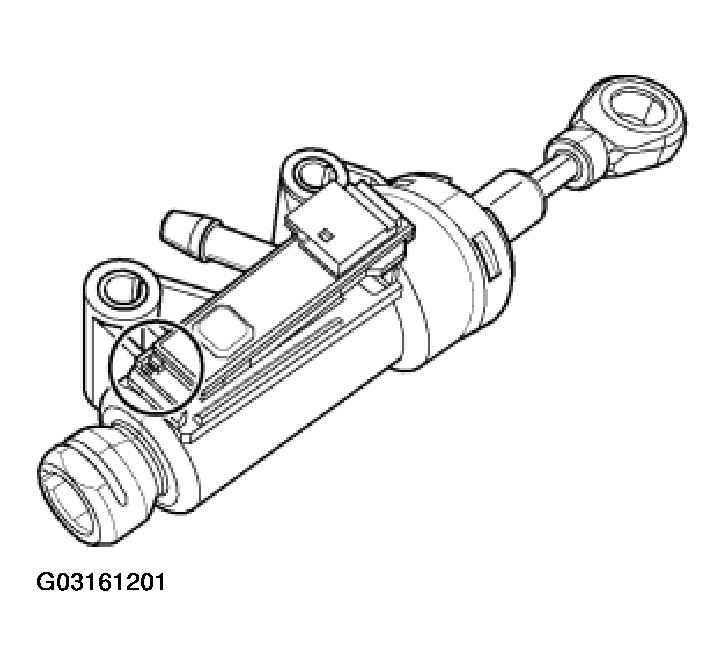

Fig 2: Identifying Installed Position Of Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.
