High-Pressure Fuel System: Notes

The 4-cylinder gasoline engine operates with direct fuel injection. The purpose of direct fuel injection is to increase performance. The maximum fuel pressure in this case is 120 bar (idle: 50 bar, full load: 120 bar). The use of direct fuel injection creates a homogeneous mixture preparation in the entire combustion chamber. Homogeneous mixture preparation means that the fuel-air ratio is regulated stoichiometrically in the same way as for intake pipe fuel injection (Lambda = 1). "Stoichiometrically" means a ratio of 14.7 kilograms of air to 1 kilogram of fuel. Due to the homogeneous mixture preparation, conventional exhaust retreatment can be used.

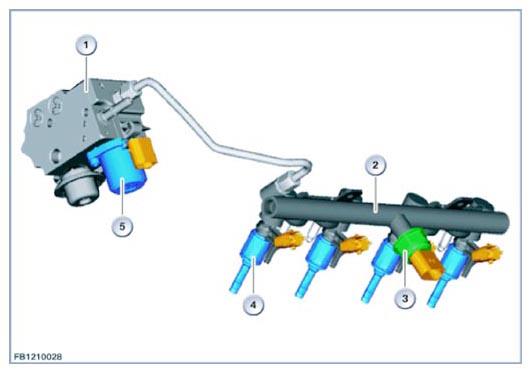

Fig 1: Identifying High Pressure Pump, Rail Pressure Sensor And Injection System

Courtesy of BMW OF NORTH AMERICA, INC.
