Installation (7-Series)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 1997 BMW Z3, 1997 BMW M3, 1997 BMW 840Ci, 1997 BMW 740iL, and 1997 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

To prevent torsional stress, align connector hose and cable between lid and fuel pump. See Fig 5. Install unit in fuel tank, ensuring both retaining hooks are aligned.
Ensure "O" ring is correctly aligned on intake neck. Install lid and tighten 8 screws in a crosswise pattern. To complete installation, reverse removal procedure.

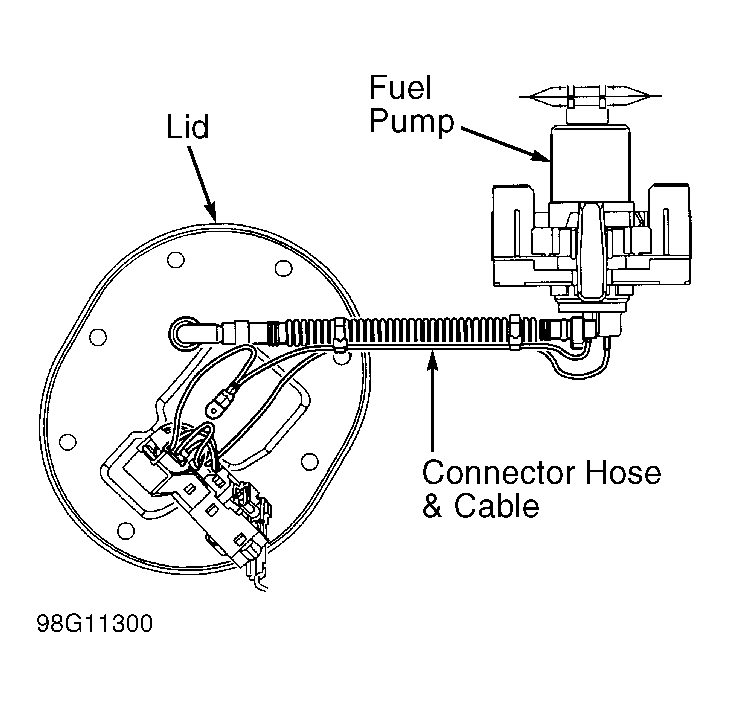

Fig 1: Aligning Cable Between Fuel Level Sensor & Fuel Pump
Courtesy of BMW OF NORTH AMERICA, INC.

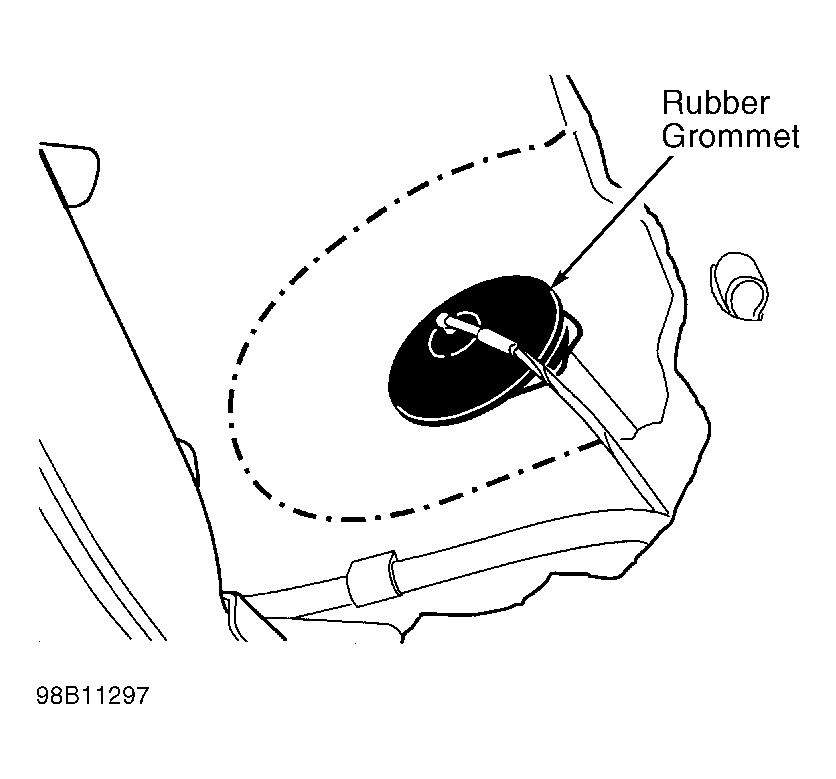

Fig 2: Removing Rubber Grommet
Courtesy of BMW OF NORTH AMERICA, INC.

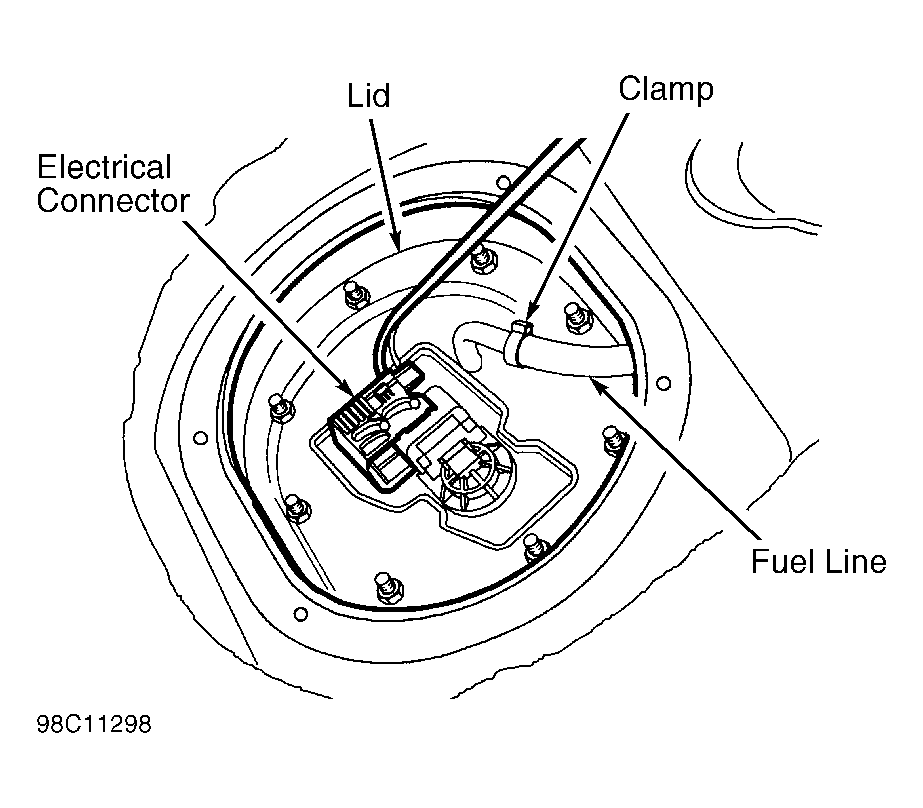

Fig 3: Disconnecting Fuel Line
Courtesy of BMW OF NORTH AMERICA, INC.

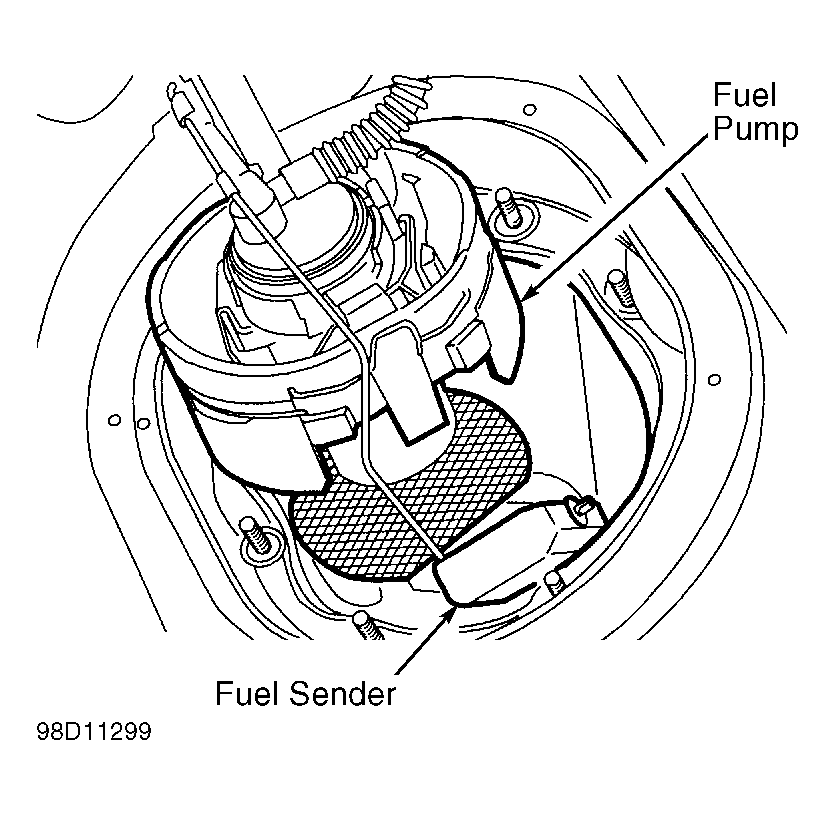

Fig 4: Removing Fuel Pump & Sender
Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Aligning Connector Hose & Cable Between Lid & Fuel Pump
Courtesy of BMW OF NORTH AMERICA, INC.
