Removal & Installation (V8)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 1997 BMW Z3, 1997 BMW M3, 1997 BMW 840Ci, 1997 BMW 740iL, and 1997 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

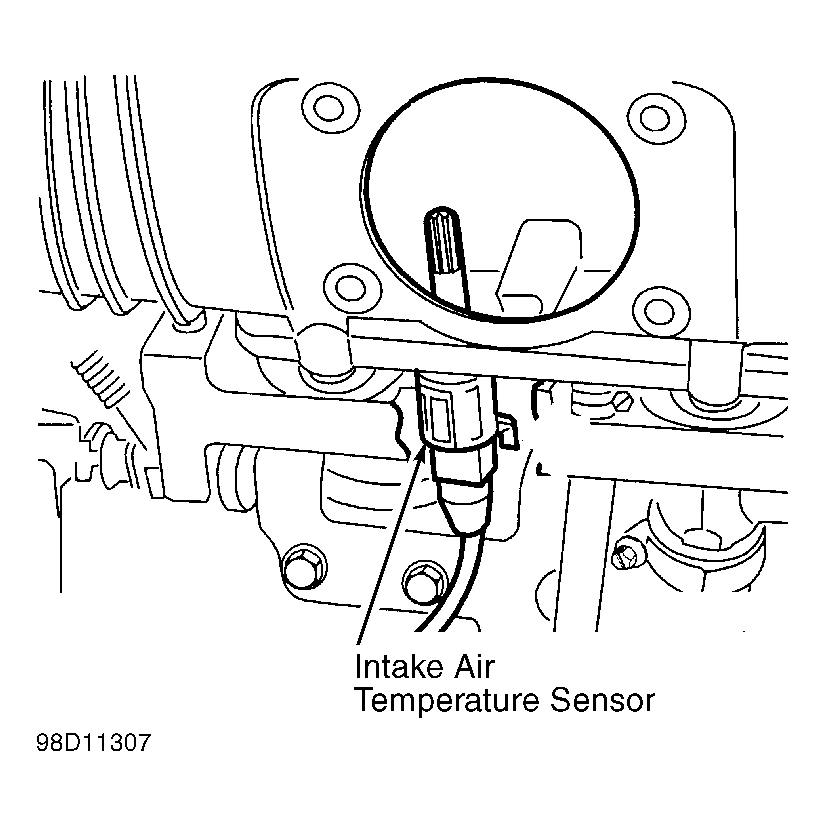

Remove throttle body. See THROTTLE BODY . Disconnect intake air temperature sensor electrical connector. Press locking button and unclip temperature sensor from intake air manifold. To install, reverse removal procedure.
