99 00... Paintwork (2 and 3 coats)

Follow GENERAL INSTRUCTIONS ON PAINTING .

The following scopes of work are applicable to 2- and 3-coat paintwork.

Inside mirror

Fig 1: Identifying Inside Mirror Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Outer door handle

Area specification applies to all paint stages.

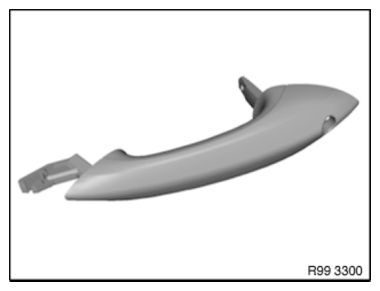

Fig 2: Identifying Outer Door Handle Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Roof

Area specification applies to all paint stages.

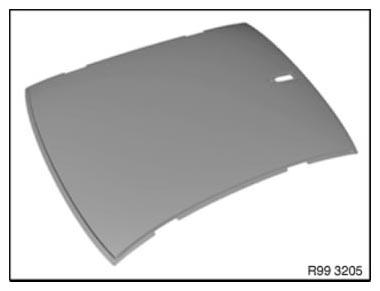

Fig 3: Identifying Roof Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Trim strip on roof frame

Area specification applies to all paint stages.

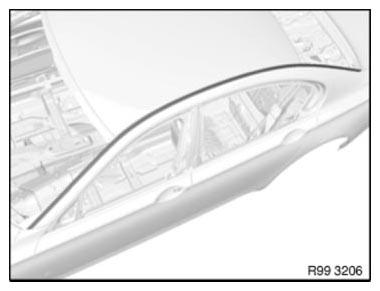

Fig 4: Identifying Trim Strip On Roof Frame Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tail panel

Area specification applies to all paint stages.

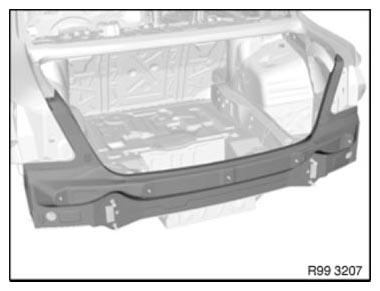

Fig 5: Identifying Tail Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Side wall, front

Area specification applies to all paint stages.

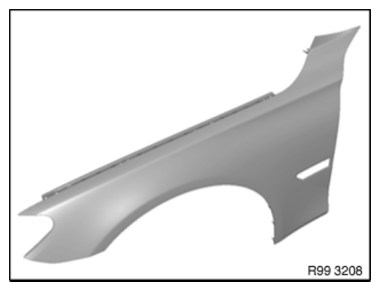

Fig 6: Identifying Front Side Wall Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to paint stage 1.

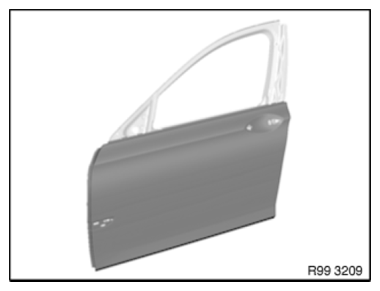

Fig 7: Identifying Front Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to paint stages 2 and 3.

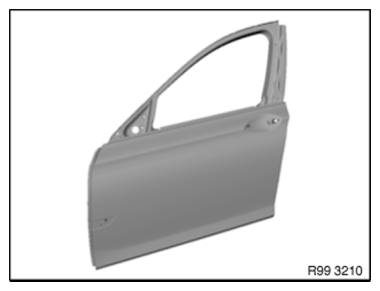

Fig 8: Identifying Front Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Additional area specification inner panel for paint stages 2 and 3.

Fig 9: Identifying Front Door Inner Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Area specification applies to paint stage 1.

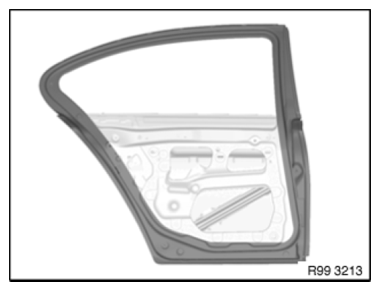

Fig 10: Identifying Rear Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Area specification applies to paint stages 2 and 3.

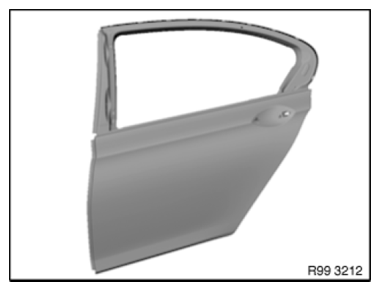

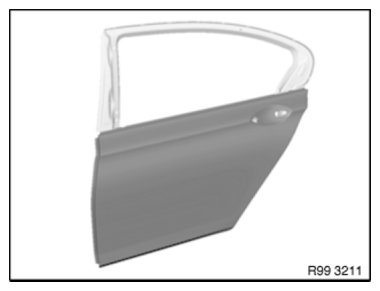

Fig 11: Identifying Rear Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Additional area specification inner panel for paint stages 2 and 3.

Fig 12: Identifying Rear Door Inner Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid

Area specification applies to all paint stages.

Additionally complete inner panel for paint stages 2 and 3.

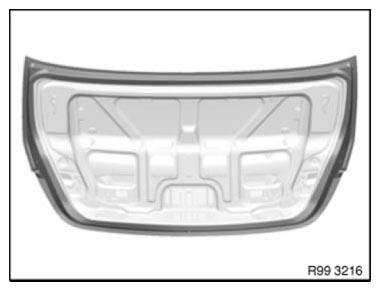

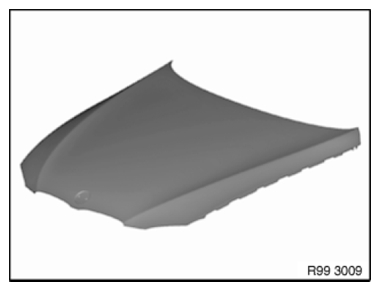

Fig 13: Identifying Engine Compartment Lid Inner Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Area specification applies to all paint stages.

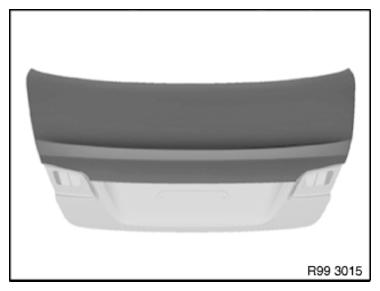

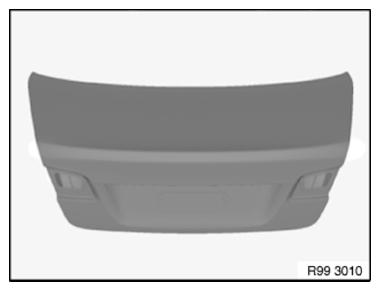

Fig 14: Identifying Tailgate Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Additional area specification inner panel for paint stages 2 and 3.

Fig 15: Identifying Tailgate Inner Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Flap for fuel filler neck

Area specification applies to all paint stages.

Additionally with inner plate for paint stages 2 and 3.

Fig 16: Identifying Fuel Filler Neck Flap Inner Plate Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Trim panel for cover on side member

Area specification applies to all paint stages.

Fig 17: Identifying Trim Panel For Cover On Side Member Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Trim panel, bumper, front

Area specification applies to all paint stages.

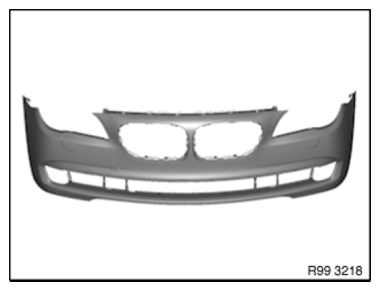

Fig 18: Identifying Front Bumper Trim Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Trim panel, bumper, rear

Area specification applies to all paint stages.

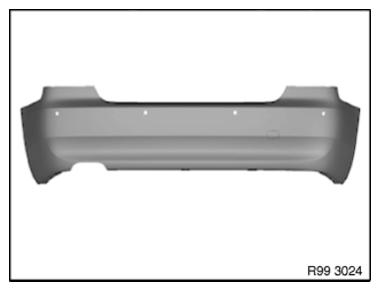

Fig 19: Identifying Rear Bumper Trim Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Door post, middle

Area specification applies to all paint stages.

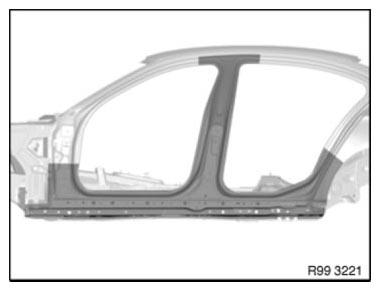

Fig 20: Identifying Door Post, Middle Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 1.

Fig 21: Identifying Front Roof Frame Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 3.

Fig 22: Identifying Front Roof Frame Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame

Area specification applies to all paint stages.

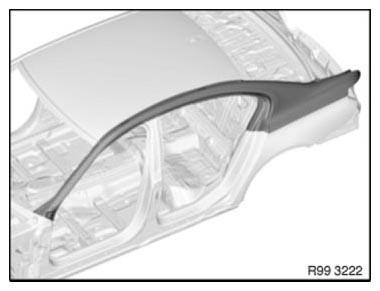

Fig 23: Identifying Roof Frame Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel (up to roof frame, middle)

Area specification applies to paint stage 1.

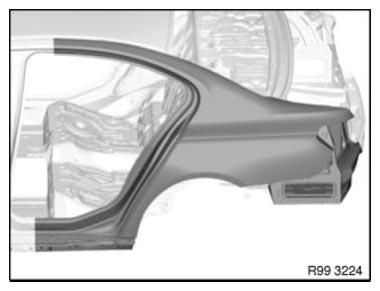

Fig 24: Identifying Rear Side Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel (up to roof frame, middle)

Area specification applies to paint stage 3.

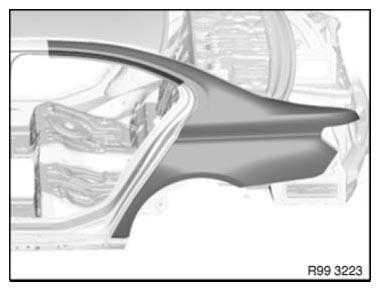

Fig 25: Identifying Rear Side Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Cover for entrance

Area specification applies to all paint stages.

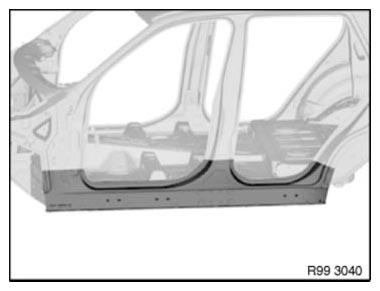

Fig 26: Identifying Entrance Cover Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate, top

Area specification applies to all paint stages.

Fig 27: Identifying Tailgate Paintwork Area (Top)

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate, bottom

Area specification applies to all paint stages.

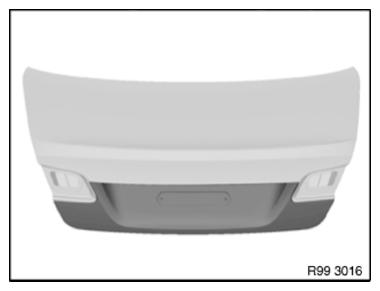

Fig 28: Identifying Tailgate Paintwork Area (Bottom)

Courtesy of BMW OF NORTH AMERICA, INC.
