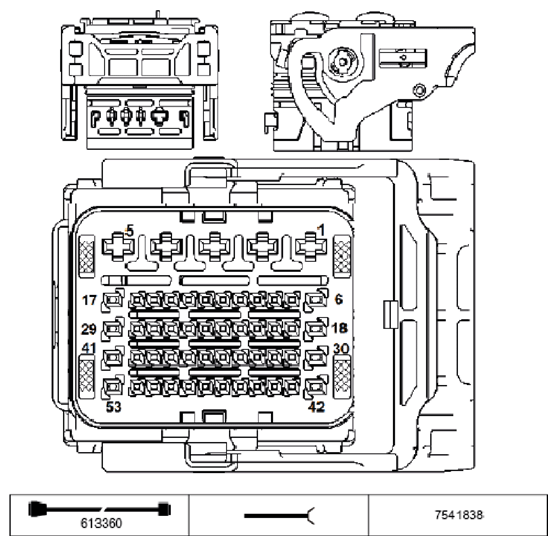

DME Control Module X60231 Connector End View
Pin Assignments At Plug Connector X60231
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Activation Valvetronic servomotor | Valvetronic servomotor |
| 2 | A | Activation Valvetronic servomotor | Valvetronic servomotor |
| 3 | M | Ground Valvetronic servomotor | Valvetronic servomotor |
| 4 | -- | Not occupied | |
| 5 | A | Supply, terminal 15 Ignition coils | Connector X6969 |
| 6 | A | Signal, fuel tank vent valve | Fuel tank vent valve |
| 7 | M | Ground Exhaust camshaft sensor | Exhaust camshaft sensor |
| 8 | M | Ground Intake camshaft sensor | Intake camshaft sensor |
| 9 | M | Ground Hot-film air mass meter | Hot-film air mass meter |
| 10 | E | Signal, throttle valve position Electric throttle valve actuator | Electric throttle valve actuator |
| 11 | E | Signal, throttle valve position Electric throttle valve actuator | Electric throttle valve actuator |
| 12 | -- | Not occupied | |
| 13 | -- | Not occupied | |
| 14 | M | Ground Map thermostat | Map thermostat |
| 15 | E | Signal, oxygen sensor | Oxygen sensor before catalytic converter |
| 16 | -- | Not occupied | |
| 17 | A | Terminal 87 Connector X6820 | Connector X6820 |
| 18 | A | Activation Oxygen sensor heater behind catalytic converter | Oxygen sensor behind catalytic converter |
| 19 | -- | Not occupied | |
| 20 | -- | Not occupied | |
| 21 | E | Signal Intake pipe pressure sensor | Intake pipe pressure sensor |
| 22 | -- | Not occupied | |
| 23 | E | Signal, intake air temperature | Intake air temperature pressure sensor |
| 24 | E | Signal, oxygen sensor | Oxygen sensor behind catalytic converter |
| 25 | M | Ground Oxygen sensor behind catalytic converter | Oxygen sensor behind catalytic converter |
| 26 | M | Ground Electric throttle valve actuator | Electric throttle valve actuator |
| 27 | M | Ground Oxygen sensor before catalytic converter | Oxygen sensor before catalytic converter |
| 28 | E | Signal, oxygen sensor | Oxygen sensor before catalytic converter |
| 29 | A | Terminal 87 Connector X6820 | Connector X6820 |
| 30 | A | Activation Oxygen sensor heater in front of catalytic converter | Oxygen sensor before catalytic converter |
| 31 | -- | Not occupied | |
| 32 | A | Signal Map thermostat | Map thermostat |
| 33 | E | Signal Knock sensor | Knock sensor |
| 34 | E | Signal, knock sensor | Knock sensor |
| 35 | -- | Not occupied | |
| 36 | A | Supply, terminal 15 Electric throttle valve actuator | Electric throttle valve actuator |
| 37 | A | Supply, terminal 15 Intake pipe pressure sensor | Intake pipe pressure sensor |
| 38 | A | Supply Exhaust camshaft sensor | Exhaust camshaft sensor |
| 39 | A | Supply Intake camshaft sensor | Intake camshaft sensor |
| 40 | A | Supply, terminal 15 | Hot-film air mass meter |
| 41 | A | Supply, terminal 87 | Connector X6821 |
| 42 | M | USA: Ground Bypass for positive crankcase ventilation | Bypass for positive crankcase ventilation |
| 43 | M | Ground Intake pipe pressure sensor | Intake pipe pressure sensor |
| 44 | -- | Not occupied | |
| 45 | A | Activation Volume control valve | Volume control valve |
| 46 | M | Ground Engine oil pressure sensor | Engine oil pressure sensor |
| 47 | A | Signal Thrust air control valve | Thrust air control valve |
| 48 | A | Signal Turbocharger coolant pump | Turbocharger coolant pump |
| 49 | E | Signal Map thermostat | Map thermostat |
| 50 | A | Supply Engine oil pressure sensor | Engine oil pressure sensor |
| 51 | E | Signal Engine oil pressure sensor | Engine oil pressure sensor |
| 52 | -- | Not occupied | |
| 53 | A | USA: Supply, terminal 15 PVC heater | PVC heater |
