86 10... Removing plastic bush/metal bush

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Release countersunk metal screws (1).

Fig 1: Identifying Countersunk Metal Screws

Courtesy of BMW OF NORTH AMERICA, INC.

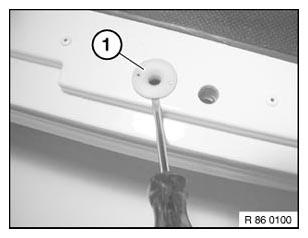

Lever out plastic bush/metal bush (1) with a screwdriver.

Fig 2: Lever Out Plastic Bush/Metal Bush

Courtesy of BMW OF NORTH AMERICA, INC.
