Circuit Protection Devices
WARNING: This page is about a different car, the 1998 BMW Z3 and 1998 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| ASC Diode | In front power distribution box. |
| Auxiliary Fuse Box | Under left side of dash. |
| E-Box (1.9L) | On right rear of engine compartment. |
| E-Box (2.8L) | On right rear of engine compartment. |
| Front Power Distribution Box | On left rear corner of engine compartment. |
| Fuse Holder | Behind front of center console. |

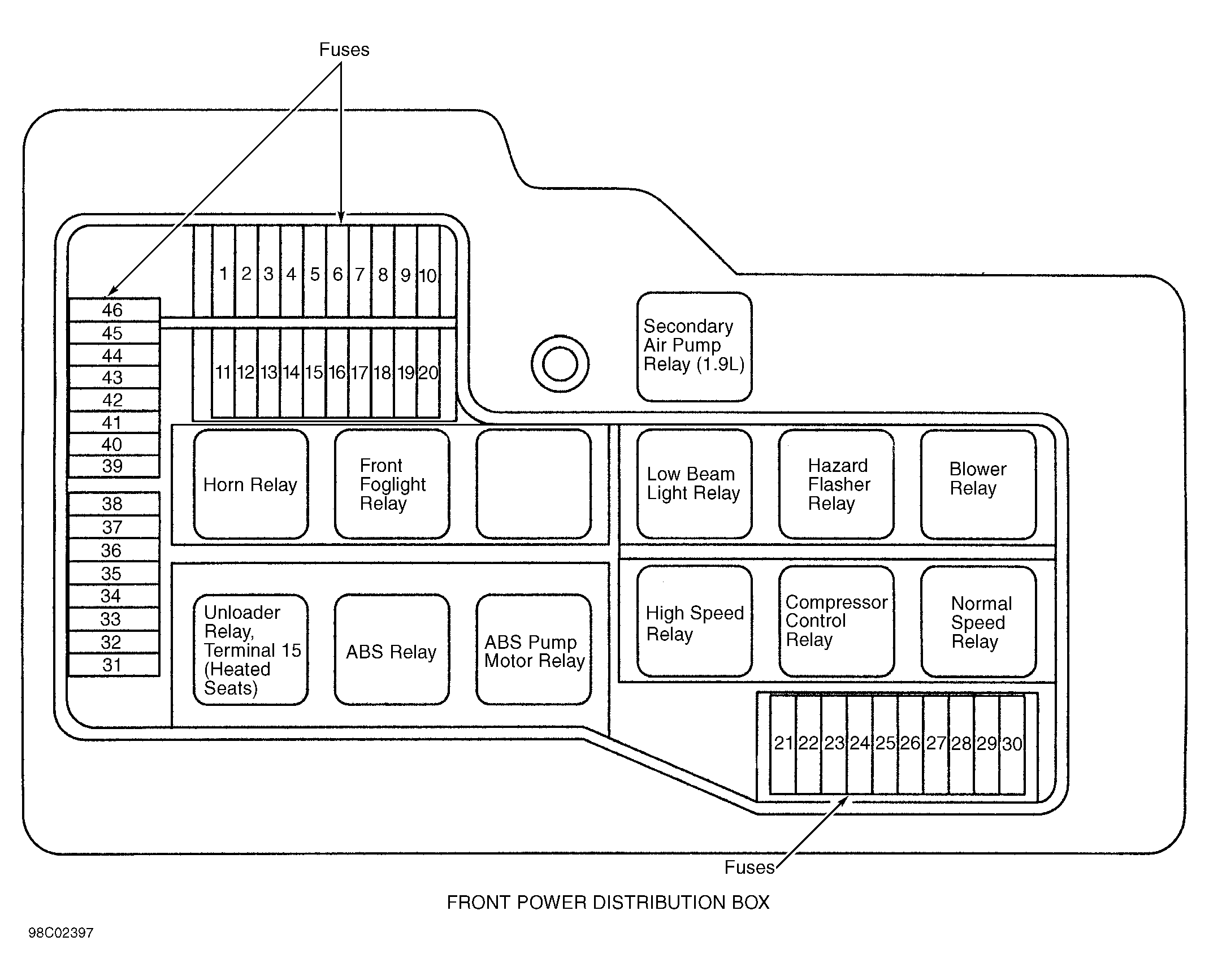

| Fuses | In front power distribution box. See Figure. |
| Fusible Link | On right side of luggage compartment. |
| Relay Panel | Under left side of dash. |
