00 00... Information/warning labels
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

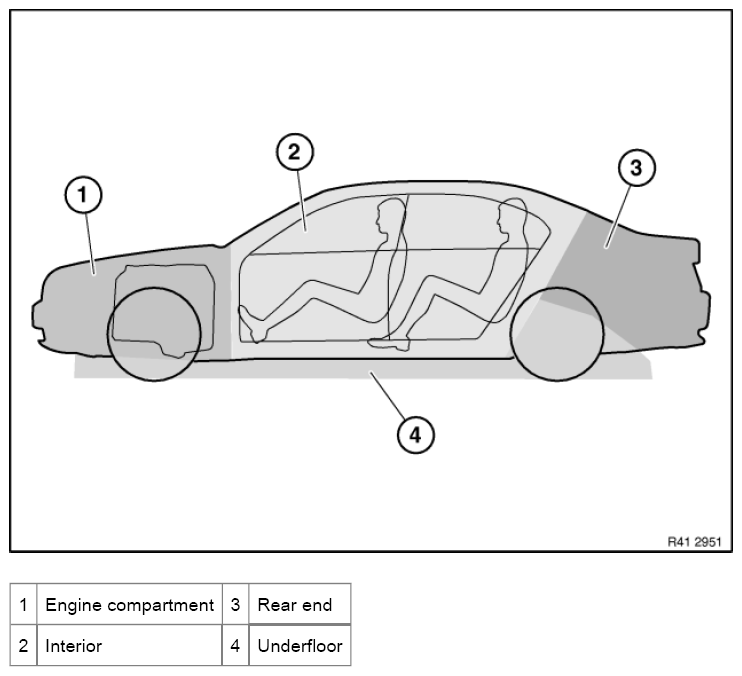

LOCATION, INFORMATION/WARNING LABEL AND COUNTRY
| Engine compartment (1): | ||
|---|---|---|
| Carrier support, wheel arch front left top, front passenger side | Vehicle identification number | India only |
| Connection, top front | BMW Individual | Only Individual U490, SA940, Z1XX, SABI |
| Connection, front top left and right | Warning label, xenon light | Worldwide |
| Connection, top front | Aluminum screws/bolts | China, N5X, see TAIS |
| Cylinder head cover | Ignition coil | see TAIS |
| Connection, top front | BMW High Performance Oil | US only |
| Connection, top left | Retaining hook | Worldwide |
| Sealing cap of coolant expansion tank | Coolant cap, China | China only |
| Engine compartment lid, inner panel | Refrigerant | Worldwide |
| Engine compartment lid, inner panel | Production date | Australia, Great Britain |
| Engine compartment lid, inner panel | Exhaust gas | US only |
| Dome bulkhead cross-brace, left | Brake fluid | Canada only |
| Connection, top front | Exterior paint | Only US, CDN version, Japan version, Australia version, Gulf version, China version and for all SKDs |
| Control unit, 12-cylinder engine: 2 devices = 2 labels | Type plate for engine control unit | China only |
| Engine compartment lid, inner panel | Duplicate type plate independent heating | Only optional equipment SA 536 and only petrol or diesel |
| Interior (2): | ||
|---|---|---|
| Windscreen | CCC | China only |
| Trim, hot-air routing | Vehicle identification number | US, Canada or SA8SM |
| Decor strip | Front passenger airbag | US only |
| Windscreen, inner, driver's side, top | Maximum speed M+S | Car rental SA931, Dispatch, BMW World SA9WR |
| Bottle holder | Parking brake emergency release | see TAIS |
| Complete vehicle, bodyshell: | ||
|---|---|---|
| B-pillar, driver's side | Manufacturer's certificate | US, CDN, Gulf States |
| B-pillar, driver's side | Tyre inflation pressure | Worldwide |
| B-pillar, driver's side | Tyre inflation pressure monitoring system | US only |
| B-pillar, driver's side | Runflat indicator | Worldwide (not US, CDN) |
| B-pillar, driver's side | Warning labels, side airbag | see TAIS |
| B-pillar, right | Nameplate | China only |
| B-pillar, driver's side | EC type plate with model designation, vehicle identification number, color code | Worldwide, not US, CDN, China, Japan, Korea, Australia, Gulf States, SA8AC, SKDs |
| B-pillar, driver's side | Towing | Four-wheel drive vehicles only |
| Rear end (3): | ||
|---|---|---|
| Fuel filler cap, inner | Independent heating | Europe, only SA536 |
| Fuel filler flap, inner | Unleaded petrol ROZ95 | N54/N63/N74 only |
| Fuel filler flap, inner | Premium unleaded | China, US |
| Enclosure for Owner's Handbook | Efficient Dynamics | SA1CD only |
| Power distribution box, rear | Fastening stickers, rear | Worldwide |
| Luggage compartment floor, front | Parking brake emergency release | Worldwide |
| Rear lid, outer | Barcode | US, Great Britain, China |
| Toolkit cover | BMW Group Mobile Service | US, LA801 |
| Toolkit | Transmission | see TAIS |
| Underfloor (4): | ||
|---|---|---|
| Front axle support under steering gear drive | Airbag (basic setting) | For all optional equipment/national-market versions |
| Link and right tension struts | Do not lash down | see TAIS |
Key:
US = United States
CDN = Canada
CCC = Car Communication Computer
OBD = On-Board Diagnosis
