52 24... Removing and installing/replacing all guide sleeves for rear head restraints
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Remove HEAD RESTRAINT from rear seat.

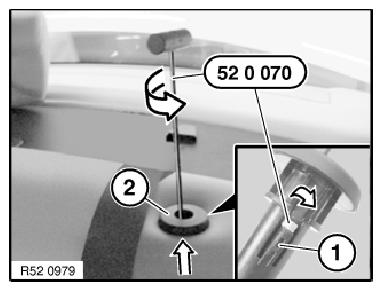

Insert special tool 52 0 070 into guide hole of sleeve (2) up to upper area of retaining lug.
Feed release tongue of special tool into rear gap on retaining lug (1).
Turn tool to release sleeve (2) and pull out by lifting upwards.
Installation:
Replace faulty sleeves.
