63 11... Installing headlight repair kit

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove headlight. See LEFT HEADLIGHT or RIGHT HEADLIGHT .

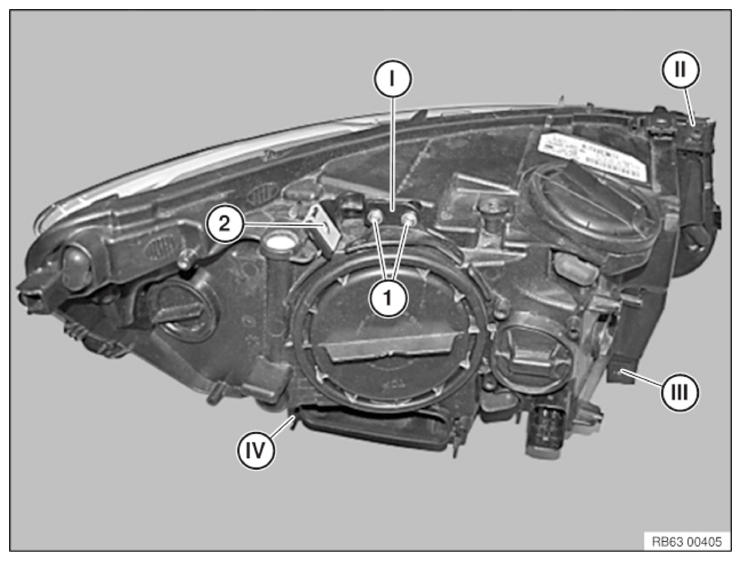

Fig 1: Identifying Headlight Components
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Damaged holders (I, II, III, IV) can be replaced using the repair kit.
Replacement of headlight is not required!

Mount the holder from repair kit (I) with clamp (2) as shown. Tighten screws (1).

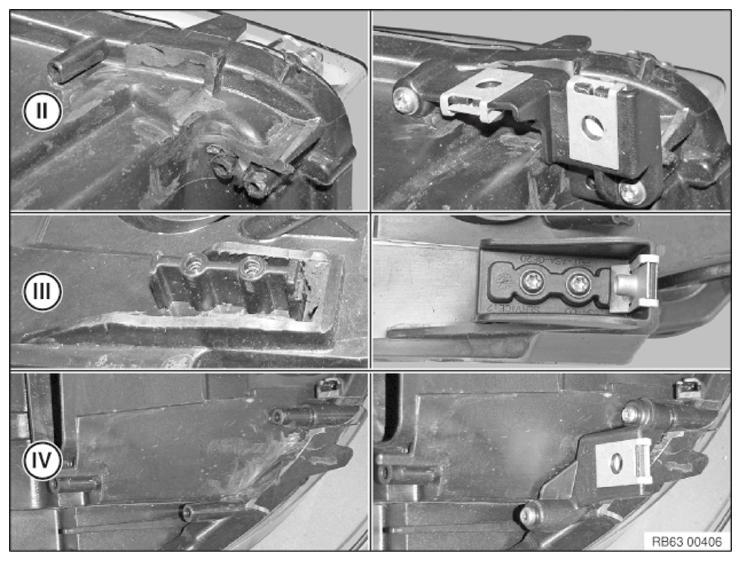

Fig 2: Identifying Damaged Holders And Repair Kit Mounted With Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holders (II, III, IV) as shown in left-hand image.

Mount holders from repair kit with retaining clips as shown in right-hand image and screw into place.

After installation:

ADJUST HEADLIGHTS
