63 11... Installing headlight repair kit

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove headlight.

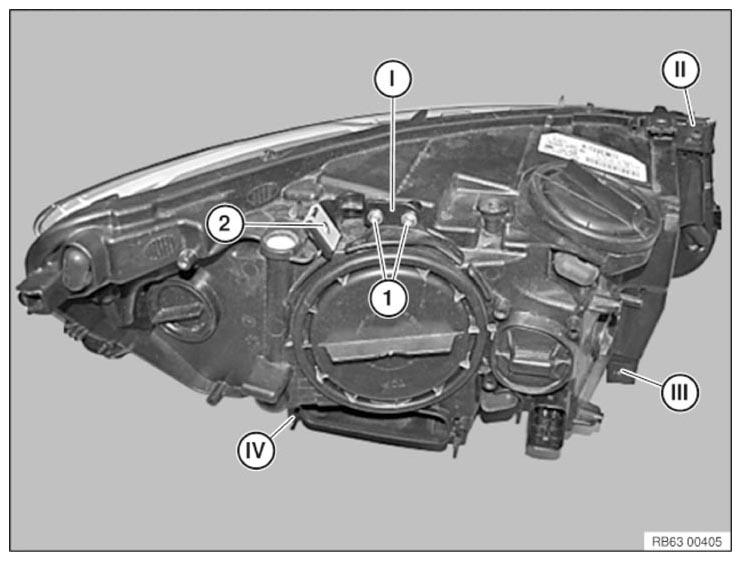

Fig 1: Identifying Damaged Holder, Repair Kit And Mounting Screw
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Damaged holders (I, II, III, IV) can be replaced using the repair kit.
Replacement of headlight is not required!

Mount the holder from repair kit (I) with clamp (2) as shown. Tighten screws (1).

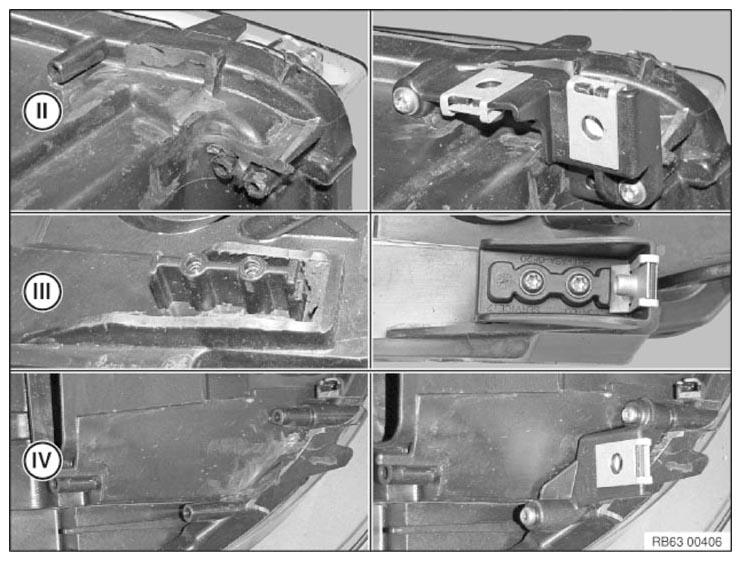

Fig 2: Identifying Holder From Repair Kit, Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holders (II, III, IV) as shown in left-hand image.

Mount holders from repair kit with retaining clips as shown in right-hand image and screw into place.

After installation:

ADJUST HEADLIGHTS
