61 21... Removing And Installing/Replacing Battery Cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove flap in luggage compartment panel on right. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Release screw (2).

Remove car jack (3).

Fold back battery cover (1) in direction of arrow.

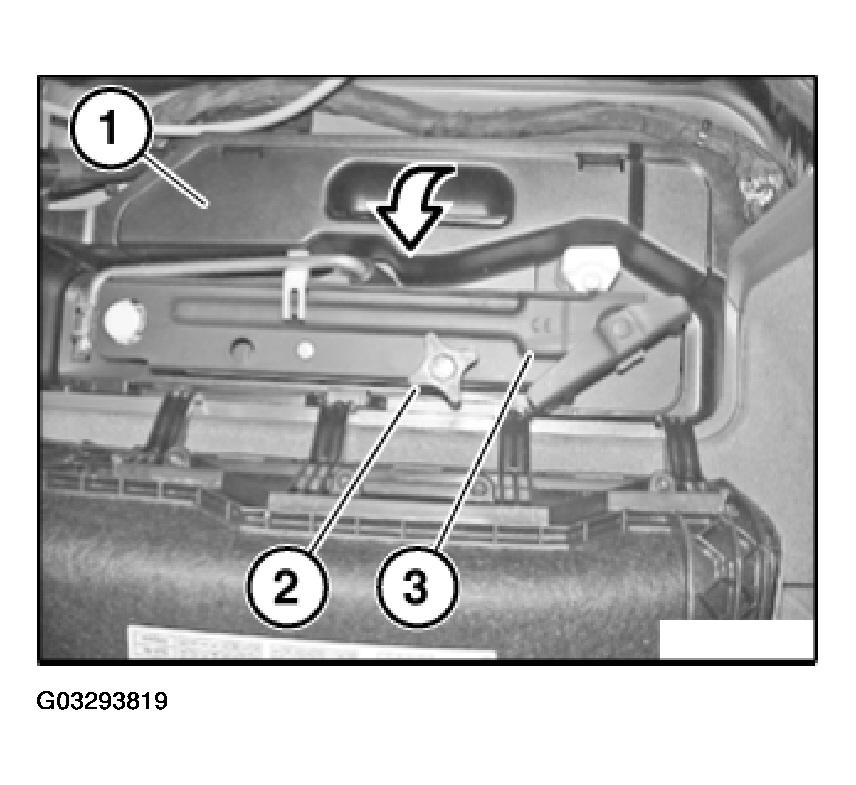

Fig 1: Screw, Car Jack, Battery Cover And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
