61 31 037 Removing And Installing/Replacing Lighting Control Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Remove wood trim on instrument panel on left. Refer to 51 45 360 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON LEFT .

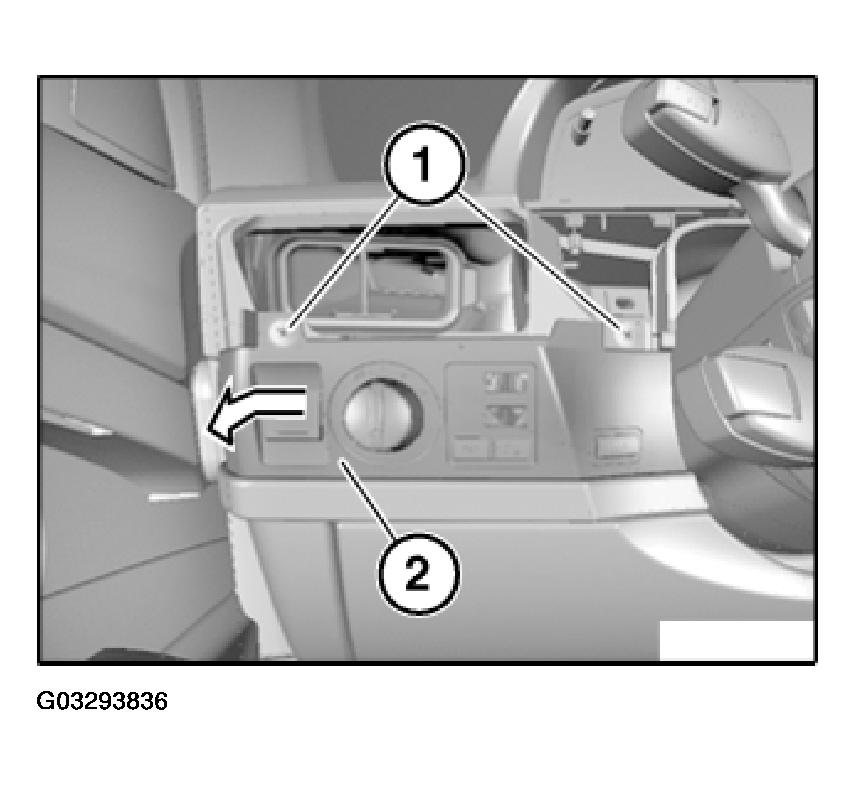

Release screws (1).
Feed lighting control unit (2) out in direction of arrow.
Disconnect plug connection behind and remove lighting control unit (2).
