61 31 231 Removing And Installing/Replacing Steering Wheel Electronics Control Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove airbag unit. Refer to 32 34 020 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT (BASIC STEERING WHEEL) and 32 34 030 REMOVING AND INSTALLING/REPLACING AIRBAG UNIT (SPORT STEERING WHEEL) .
NOTE:

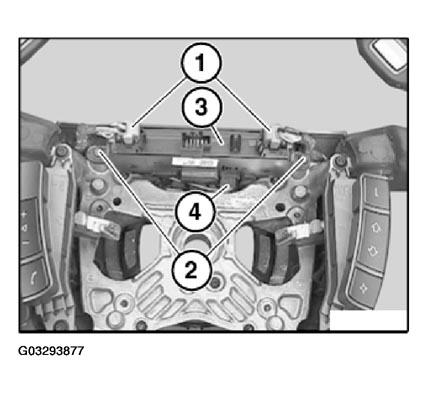

Illustration shows steering wheel removed.
Unlock plug connections (1) and disconnect.
Loosen screws (2).
Pull out steering wheel electronics control unit (3) slightly.
Unlock plug connection (4) and disconnect.
Remove steering wheel electronics control unit (3).
