61 31 492 Replacing Level Switch For Windshield Washer System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Drain fluid reservoir for windshield washer system.
Remove front underbody protection. See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION
Detach front left wheel arch trim in front area and fold back.
Remove bottom left cover.

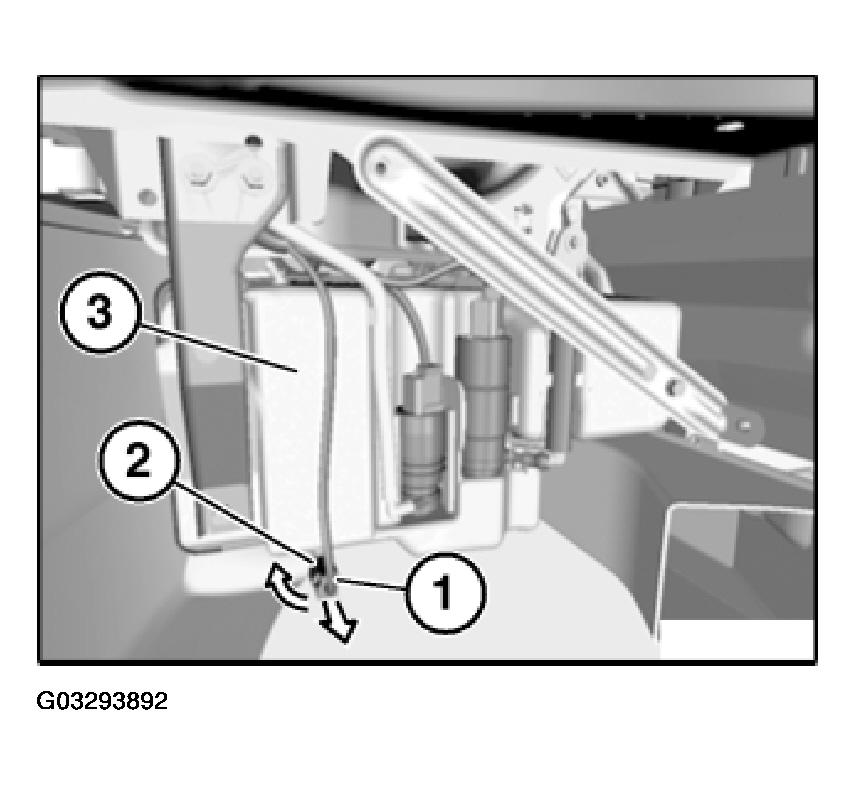

Disconnect plug connection (1).
Turn level switch for windshield washer system (2) in direction of arrow, pull down out of fluid reservoir (3) and remove.
