61 35 224 Removing And Installing (Replacing) Control Unit For Left Or Right Rear Door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

CAUTION: Risk of mixing up plugs for door lock and control unit! Mark relevant plugs prior to removal.

Disconnect plug connections (1).

Release screws (2).

Remove control unit in rear door (3).

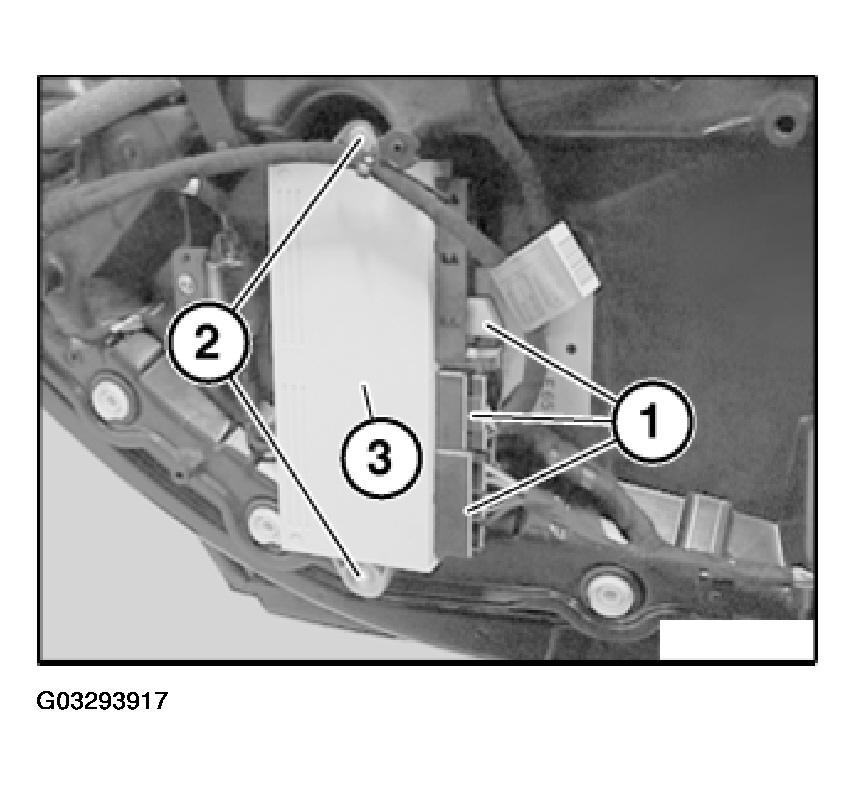

Fig 1: Plug Connection, Screws And Rear Door Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

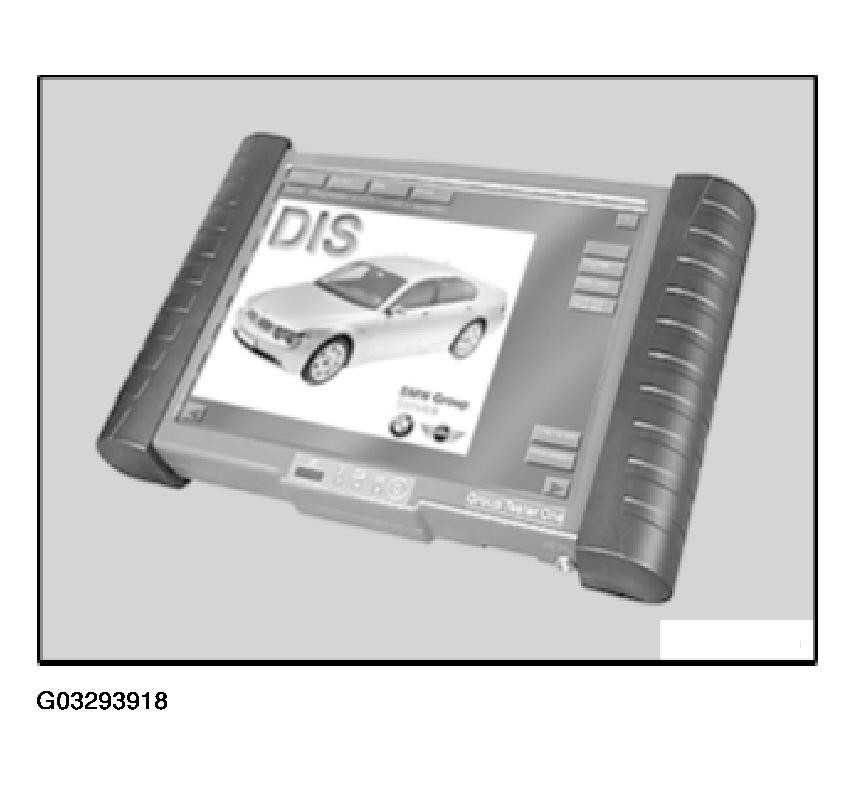

Fig 2: Identifying Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Initialize control unit in rear door. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
