65 77 700 Removing And Installing (Replacing) Safety Information Module

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions! Incorrect handling can activate airbag and cause injury. Refer to 72 00 ... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Necessary Preliminary Tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY
Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .

Unlock catch (1) in direction of arrow.

Pull safety information module (2) out of control unit carrier (3) slightly.

Unlock plug connections (4) and disconnect.

Remove safety information module (2).

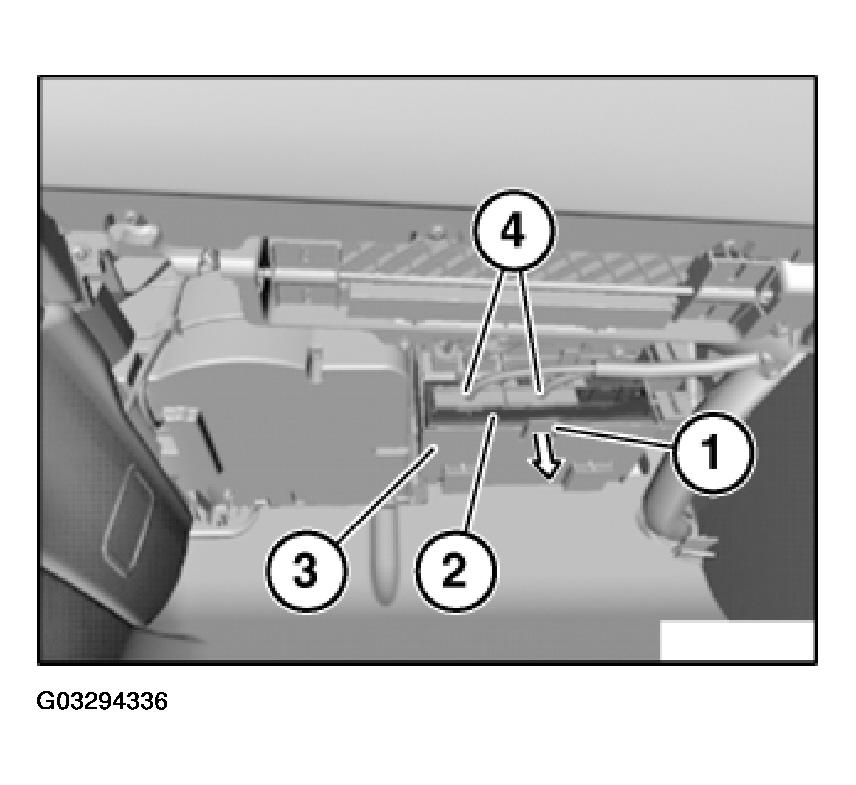

Fig 1: Catch, Safety Information Module, Control Unit Carrier, Plug Connections And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

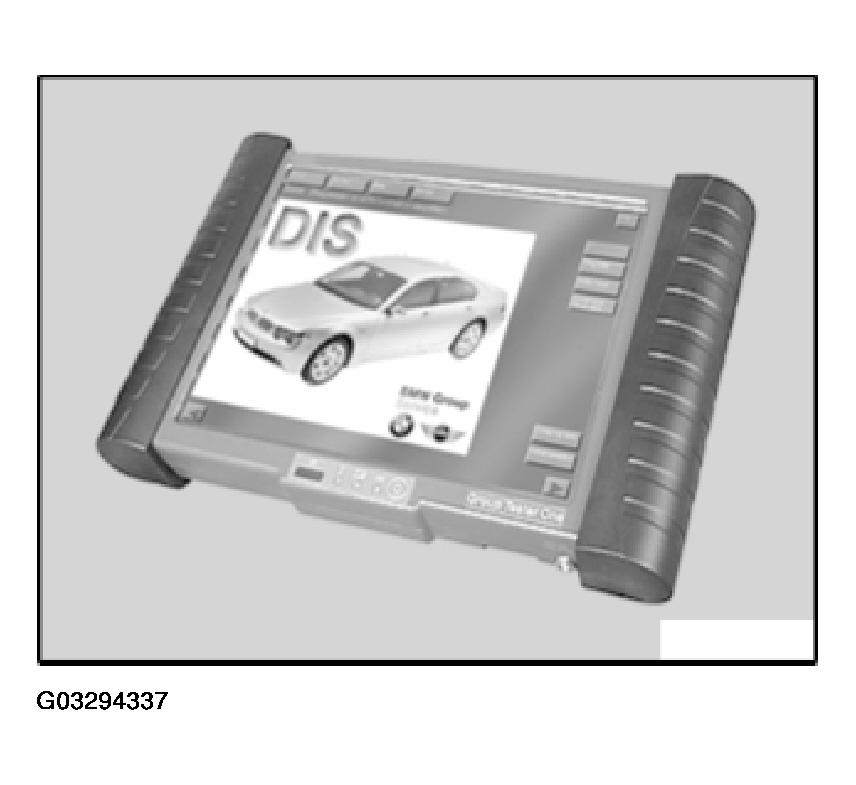

Fig 2: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
