F56 Engine And Injector Tools (M04 12 14)
Publication date: 2014-12-01Reference number: M04 12 14
F56 ENGINE AND INJECTOR TOOLS
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI M04 12 14, Date of Issue:
December 2014
| MINI: | F56 (Cooper) |
| GROUP: | Tools and Equipment |
SUBJECT
F56 Engine and Injector Tools
SITUATION
Distribution of the following tools will be through the Automatic Tool Shipment Program.

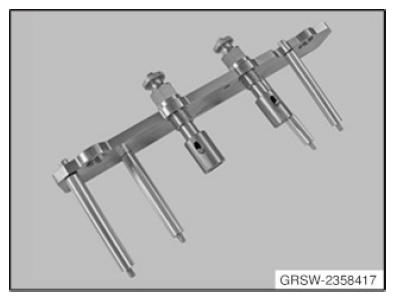

Injector Tool
B38/B48 Engine
Order P/N 83 30 2 358 417
For removal and installation of the fuel injectors. Refer to ISTA Repair Instruction 13 53 318 for full details.

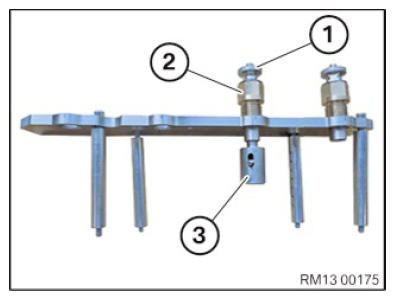

Special tool 2 358 417 consists of:
- (1) Threaded sleeves
- (2) Pull-out thread (left-hand thread)
- (3) Fixture for the injector

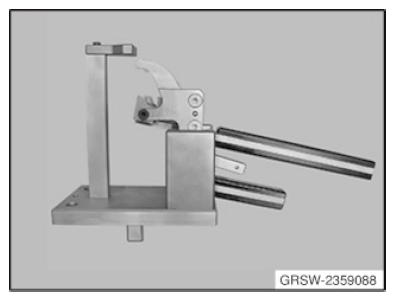

Torsion Spring Tool
B38/B48 Engine
Order P/N 83 30 2 359 088
For removal and installation of the torsion spring of the intermediate shaft lever.

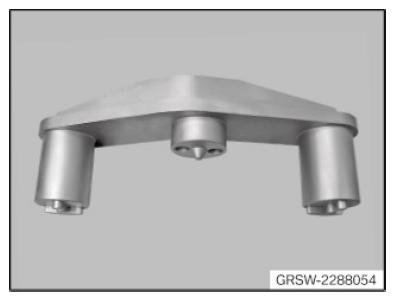

Counterbalance Fixture
B38/B48 Engine
Order P/N 83 30 2 288 054
For proper positioning of the counterbalance shafts during installation. Refer to ISTA Repair Instruction 11 27 030 for full details.
