15-Pin Test Cable For Automatic Transmission (M04 04 14)
Publication date: 2014-05-01Reference number: M04 04 14
15-PIN TEST CABLE FOR AUTOMATIC TRANSMISSION
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI M04 04 14, Date of Issue:
May, 2014
| MINI: | F56 (MINI Cooper) |
| GROUP: | Tools and Equipment |
SUBJECT
15-Pin Test Cable for Automatic Transmission
SITUATION
Distribution of the following tools will be through the Automatic Tool Shipment Program.

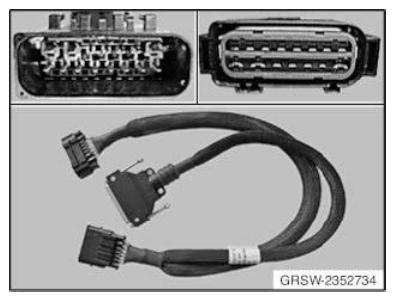

15-pin adapter cable for diagnosis of the automatic transmission
Order P/N 83 30 2 352 734
The test cable is connected between the transmission control unit and the wiring harness.

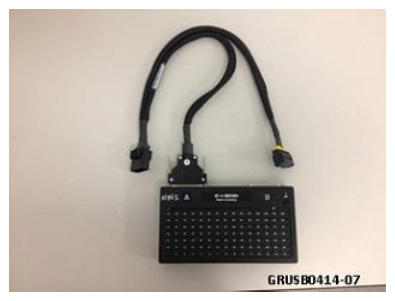

Use of breakout box 614 380/381 is required.
Follow the diagnostic test plans in ISTA.
