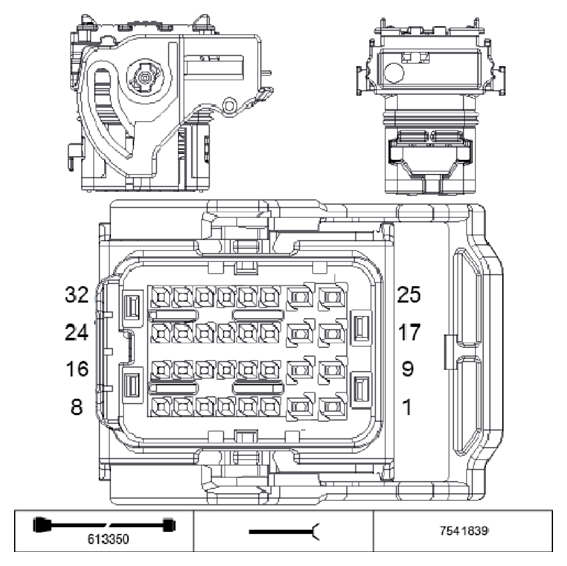

DME Control Module X60212 Connector End View
Pin Assignments At Plug Connector X60212
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Activation VANOS solenoid valve, intake | VANOS solenoid valve, intake |
| 2 | A | Activation VANOS solenoid valve, exhaust | VANOS solenoid valve, exhaust |
| 3 | -- | Not occupied | |
| 4 | -- | Not occupied | |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | A | Signal, fuel injector | Fuel injector, cylinder 4 |
| 8 | A | Activation Oil pressure control valve | Oil pressure control valve |
| 9 | A | Signal, ignition coil | Ignition coil, cylinder 3 |
| 10 | A | Signal, ignition coil | Ignition coil, cylinder 1 |
| 11 | -- | Not occupied | |
| 12 | -- | Not occupied | |
| 13 | -- | Not occupied | |
| 14 | E | USA and SA858 Signal Hot-film air mass meter | Hot-film air mass meter |
| 15 | E | Signal Exhaust camshaft sensor | Exhaust camshaft sensor |
| 16 | E | Signal Intake camshaft sensor | Intake camshaft sensor |
| 17 | A | Signal, ignition coil | Ignition coil, cylinder 2 |
| 18 | A | Signal, ignition coil | Ignition coil, cylinder 4 |
| 19 | M | Ground Eccentric shaft sensor | Eccentric shaft sensor |
| 20 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 21 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 22 | A | Supply Intake camshaft sensor | Intake camshaft sensor |
| 23 | M | Ground Intake camshaft sensor | Intake camshaft sensor |
| 24 | E | Signal Crankshaft sensor | Crankshaft sensor |
| 25 | A | Activation Electric throttle valve actuator | Electric throttle valve actuator |
| 26 | A | Activation Electric throttle valve actuator | Electric throttle valve actuator |
| 27 | -- | Not occupied | |
| 28 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 29 | A | Supply Eccentric shaft sensor | Eccentric shaft sensor |
| 30 | M | Shielding Eccentric shaft sensor | Eccentric shaft sensor |
| 31 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
| 32 | E | Signal Eccentric shaft sensor | Eccentric shaft sensor |
