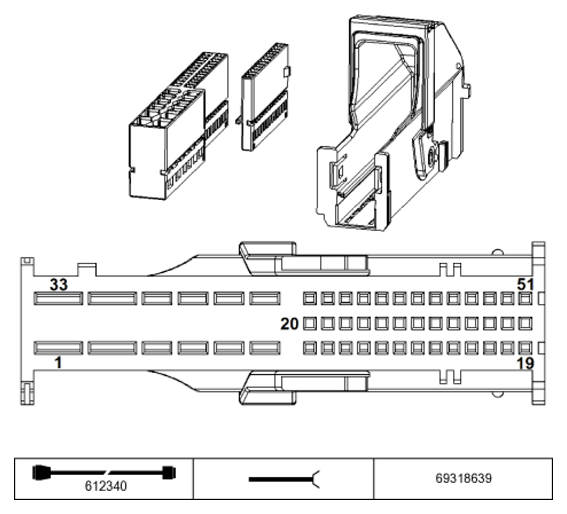

Footwell Module SX14260A Connector End View
Pin Assignments At Plug Connector X14260
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | E | Terminal 30 | Fuse F52 |
| 3 | A | Signal, fog light | Side marker/fog light, right |
| 4 | A | Signal, high beam | Right headlight |
| 5 | -- | Not used | |
| 6 | A | Signal, low beam | Left headlight |
| 7 | -- | Not used | |
| 8 | A | Signal, front right parking light | Side marker/fog light, right |
| 9 | A | Signal, reversing light | Tail light, right |
| 10 | A | Signal, rear fog light | Tail light, right |
| 11 | A | Signal, right auxiliary direction indicator light | Direction indicator light repeater, front right |
| 12 | A | Rear right direction indicator | Tail light, right |
| 13 | A | Signal, front left direction indicator | Left headlight |
| 14 | A | Signal, parking light | Tail light, left |
| 15 | A | Signal, headlight vertical aim control Q21 motor, left | Left headlight |
| 16 | A | USA Signal, parking light | Side marker light, front left Side marker light, rear right |
| 17 | A | Signal, headlight vertical aim control Q22 motor, left | Left headlight |
| 18 | A | USA Signal, parking light | Side marker light, front right Side marker light, rear left |
| 19 | A | Signal, headlight vertical aim control Q12 motor, left | Left headlight |
| 20 | -- | Not used | |
| 21 | -- | Not used | |
| 22 | -- | Not used | |
| 23 | -- | Not used | |
| 24 | E/A | with adaptive headlight Signal, LIN bus | Right headlight |
| 25 | E/A | with adaptive headlight Signal, LIN bus | Left headlight |
| 26 | M | with dynamic headlight range adjustment Sensor ground | Ride height sensor, front |
| 27 | M | with dynamic headlight range adjustment Sensor ground | Ride height sensor, rear |
| 28 | A | Signal, headlight vertical aim control Q21 motor, right | Right headlight |
| 29 | A | with dynamic headlight range adjustment Supply, level sensor | Ride height sensor, rear |
| 30 | A | Signal, headlight vertical aim control Q22 motor, right | Right headlight |
| 31 | A | with dynamic headlight range adjustment Supply, level sensor | Ride height sensor, front |
| 32 | A | Signal, headlight vertical aim control Q12 motor, right | Right headlight |
| 33 | -- | Not used | |
| 34 | -- | Not used | |
| 35 | A | without lights package with sunroof Interior lights | Interior light, front |
| 35 | A | Interior lights | Connector, interior lights |
| 35 | A | without lights package, without sunroof Interior lights | Roof operating unit |
| 36 | -- | Not used | |
| 37 | -- | Not used | |
| 38 | -- | Not used | |
| 39 | -- | Not used | |
| 40 | A | Signal, centre brake light | Auxiliary brake light |
| 41 | A | with xenon headlight Voltage supply, headlights | Connector X13727 |
| 42 | A | with adaptive headlight Voltage supply, headlights | Left headlight Right headlight |
| 43 | E/A | Signal PT-CAN low | CAN bus connector |
| 44 | E/A | Signal PT-CAN high | CAN bus connector |
| 45 | E/A | CAN bus low | CAN bus connector |
| 46 | E/A | CAN bus high | CAN bus connector |
| 47 | M | Ground | Ground point |
| 48 | E | with dynamic headlight range adjustment Signal, rear level sensor | Ride height sensor, rear |
| 49 | E | with dynamic headlight range adjustment Signal, front level sensor | Ride height sensor, front |
| 50 | A | Signal, headlight vertical aim control Q11 motor, left | Left headlight |
| 51 | A | Signal, headlight vertical aim control Q11 motor, right | Right headlight |
