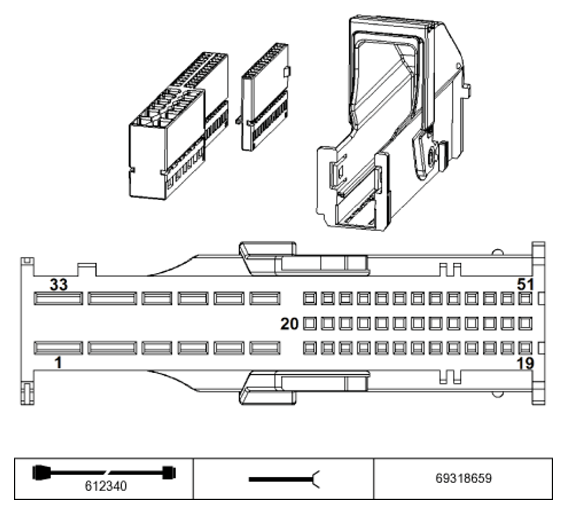

Footwell Module SX14261A Connector End View
Pin Assignments At Plug Connector X14261
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Terminal 30 | Fuse F4 |
| 2 | -- | Not used | |
| 3 | E | Terminal 30 | Fuse F8 |
| 4 | A | Signal, driver's power window motor, open | Driver's window motor |
| 5 | A | Signal, driver's power window motor, closed | Driver's window motor |
| 6 | A | Signal, high beam | Left headlight |
| 7 | -- | Not used | |
| 8 | E | Signal, switch lighting orange | Connectors X18101, X2859, X01436 |
| 9 | A | Signal, brake light | Tail light, right |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | E | Supply, terminal 15 | A149a Car access system |
| 13 | E | Door contact signal | System lock, passenger's door |
| 14 | E | Signal Incremental transducer 1, driver's power window | Incremental transducer 1, driver's power window |
| 15 | E | right-hand drive Door contact signal | System lock, rear driver's side |
| 15 | E | left-hand drive Door contact signal | System lock, rear passenger's side |
| 16 | M | Sensor ground Incremental transducer, power window regulator, driver's door | Incremental transducer, power window regulator, driver's door |
| 17 | M | Sensor ground Incremental transducer, power window regulator, front passenger's door | Incremental transducer, power window regulator, front passenger's door |
| 18 | M | Ground | Ground point |
| 19 | E | Reversing signal | Reversing light switch |
| 20 | -- | Not used | |
| 21 | E | Brake light switch signal | Brake light switch |
| 22 | E | Signal Incremental transducer 2, driver's power window | Incremental transducer 2, driver's power window |
| 23 | E | Signal Incremental transducer 2, front passenger's power window | Incremental transducer 2, front passenger's power window |
| 24 | E | Signal, driver's door contact | System lock, driver's door |
| 25 | A | Signal Incremental transducer 1, front passenger's power window | Incremental transducer 1, front passenger's power window |
| 26 | E | right-hand drive Door contact signal | System lock, rear passenger's side |
| 26 | E | left-hand drive Door contact signal | System lock, rear driver's side |
| 27 | E | Signal, interior light switch | Roof operating unit |
| 28 | -- | Not used | |
| 29 | -- | Not used | |
| 30 | E | Signal, switch lighting | Roof operating unit |
| 31 | -- | Not used | |
| 32 | E | Signal, switch lighting blue | Connector, ambient lighting |
| 33 | M | Ground | Ground point |
| 34 | E | Terminal 30 | Fuse F53 |
| 35 | A | Signal, front passenger's power window motor, open | Passenger's window motor |
| 36 | A | Signal, front passenger's power window motor, closed | Passenger's window motor |
| 37 | A | Signal, fog light | Side marker/fog light, left |
| 38 | A | Signal, low beam | Right headlight |
| 39 | -- | Not used | |
| 40 | A | Signal, front right direction indicator | Right headlight |
| 41 | A | Signal, parking light | Tail light, right |
| 42 | E | Signal, lock central locking | System lock, driver's door |
| 43 | A | Signal, brake light | Tail light, left |
| 43 | A | Signal Daytime driving lights | Side marker/fog light, left with daytime driving lights |
| 44 | A | Signal, left auxiliary direction indicator light | Direction indicator light repeater, front left |
| 45 | A | Rear left direction indicator | Tail light, left |
| 46 | E | Signal, unlock central locking | System lock, driver's door |
| 47 | A | Signal, reversing light | Tail light, left |
| 48 | A | Signal, terminal 58G | Connector, instrument and locator lighting |
| 49 | A | Signal, licence plate light | Boot lid push-button/licence plate lights |
| 50 | A | Signal, parking light | Side marker/fog light, left |
| 51 | A | Signal, rear fog light | Tail light, left |
