54 12... Notes on greasing slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Use only RHF 1 lubricating grease to grease the slide/tilt sunroof.

NOTE: Remove the old grease without fail before applying the new grease.

Apply grease only in the relevant area (new parts).

Grease the areas in the following left and right in each case.

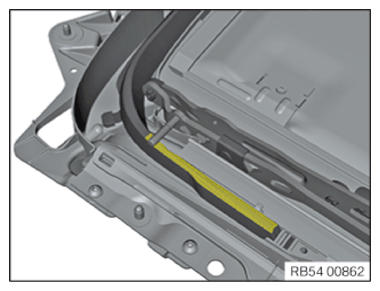

Contact surface at cowl panel.

Fig 1: Identifying Grease Applying Area On Contact Surface At Cowl Panel

G09928311

Courtesy of BMW OF NORTH AMERICA, INC.

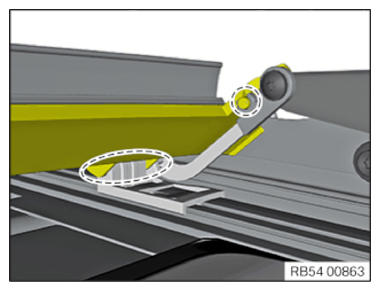

Clip connection of water channel.

Fig 2: Identifying Grease Applying Area On Clip Connection Of Water Channel

G09928312

Courtesy of BMW OF NORTH AMERICA, INC.

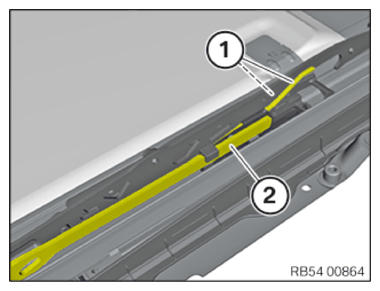

Rail (1) interior and exterior.

Rail (2).

Fig 3: Identifying Grease Applying Area On Interior And Exterior Rail

G09928313

Courtesy of BMW OF NORTH AMERICA, INC.

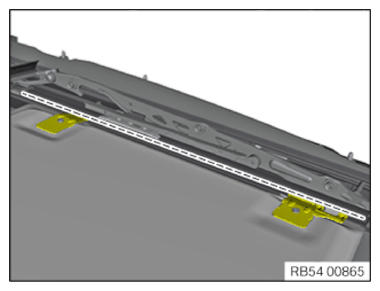

Across the entire length of the guide rail of the sliding roofliner.

Fig 4: Identifying Grease Applying Area On Entire Length Of Guide Rail Of Sliding Roofliner

G09928314

Courtesy of BMW OF NORTH AMERICA, INC.

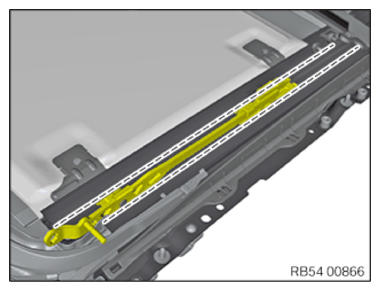

Across the entire length of the guide rail of the sliding roof mechanism.

Fig 5: Identifying Grease Applying Area On Entire Length Of Guide Rail Of Sliding Roof Mechanism

G09928315

Courtesy of BMW OF NORTH AMERICA, INC.

Limit position (1).

Fig 6: Identifying Grease Applying Area On Slide/Tilt Sunroof

G09928316

Courtesy of BMW OF NORTH AMERICA, INC.
