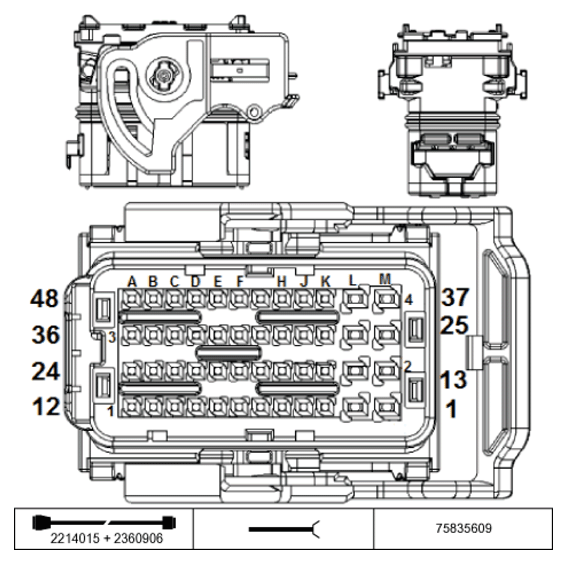

DME Control Module X60232 Connector End View
Pin Assignments At Plug Connector X60232
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Activation VANOS solenoid valve, intake | VANOS solenoid valve, intake |
| 2 | A | Activation VANOS solenoid valve, exhaust | VANOS solenoid valve, exhaust |
| 3 | A | Supply, terminal 15 Injection system, cylinder 1 | Injection system, cylinder 1 |
| 4 | A | Supply, terminal 15 Injection system, cylinder 4 | Injection system, cylinder 4 |
| 5 | A | Supply, terminal 15 Injection system, cylinder 3 | Injection system, cylinder 3 |
| 6 | A | Supply, terminal 15 Injection system, cylinder 2 | Injection system, cylinder 2 |
| 7 | A | Signal Wastegate valve | Wastegate valve |
| 8 | M | Ground Friction wheel drive | Friction wheel drive |
| 9 | M | Ground Valvetronic servomotor | Valvetronic servomotor |
| 10 | E | Signal Valvetronic servomotor | Valvetronic servomotor |
| 11 | -- | Not occupied | |
| 12 | A | Supply Intake air temperature pressure sensor | Intake air temperature pressure sensor |
| 13 | A | Signal, ignition coil | Ignition coil, cylinder 3 |
| 14 | A | Signal, ignition coil | Ignition coil, cylinder 1 |
| 15 | E | Signal, oil pressure | Oil pressure control valve |
| 16 | -- | Not occupied | |
| 17 | E | Signal Crankshaft sensor | Crankshaft sensor |
| 18 | E | Signal, hot film air mass meter Hot-film air mass meter | Hot-film air mass meter |
| 19 | E | Signal Exhaust camshaft sensor | Exhaust camshaft sensor |
| 20 | E | Signal Intake camshaft sensor | Intake camshaft sensor |
| 21 | E | Signal Valvetronic servomotor | Valvetronic servomotor |
| 22 | E | Signal Valvetronic servomotor | Valvetronic servomotor |
| 23 | A | Supply Crankshaft sensor | Crankshaft sensor |
| 24 | -- | Not occupied | |
| 25 | A | Signal, ignition coil | Ignition coil, cylinder 2 |
| 26 | A | Signal, ignition coil | Ignition coil, cylinder 4 |
| 27 | E | Signal Intake air temperature pressure sensor | Intake air temperature pressure sensor |
| 28 | E | Signal, rail pressure sensor | Rail pressure sensor |
| 29 | M | Ground Crankshaft sensor | Crankshaft sensor |
| 30 | A | Voltage supply, rail pressure sensor | Rail pressure sensor |
| 31 | M | Ground Turbocharger coolant pump | Turbocharger coolant pump |
| 32 | E | Signal, rail pressure sensor | Rail pressure sensor |
| 33 | A | Supply Valvetronic servomotor | Valvetronic servomotor |
| 34 | -- | Not occupied | |
| 35 | -- | Not occupied | |
| 36 | -- | Not occupied | |
| 37 | M | Ground Electric throttle valve actuator | Electric throttle valve actuator |
| 38 | M | Ground Electric throttle valve actuator | Electric throttle valve actuator |
| 39 | A | Signal Injection system, cylinder 3 | Injection system, cylinder 3 |
| 40 | A | Signal Injection system, cylinder 1 | Injection system, cylinder 1 |
| 41 | A | Signal Injection system, cylinder 4 | Injection system, cylinder 4 |
| 42 | A | Signal Injection system, cylinder 2 | Injection system, cylinder 2 |
| 43 | E | Signal Intake air temperature pressure sensor | Intake air temperature pressure sensor |
| 44 | -- | Not occupied | |
| 45 | E | Signal Valvetronic servomotor | Valvetronic servomotor |
| 46 | E | Signal Valvetronic servomotor | Valvetronic servomotor |
| 47 | -- | Not occupied | |
| 48 | -- | Not occupied |
