DTC button
The customer can also order "Dynamic Traction Control DTC" as an option (SA5DT).
The DTC button is located in the center console operating facility. The DTC button is used to switch over the operating condition of the Dynamic Stability Control. The DTC button can be used to select 3 switching states:
- DTC button not pressed after terminal change: DSC in operation (standard)
- Press DTC button briefly: DTC
- Press DTC button for longer period: DSC OFF (Dynamic Brake Control and Automatic Stability Control deactivated, ABS and all-wheel control remain active)

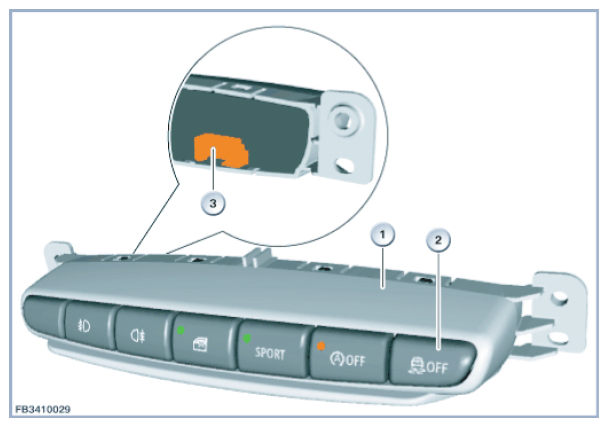

| Item | Explanation |
|---|---|
| 1 | Center console control panel |
| 2 | DSC button (OFF) |
| 3 | 4-pin plug connection |
The LIN bus provides the electrical connection between the center console control panel and the heating and air-conditioning system. The control unit relays the signals from the DSC button to the junction box electronics unit (JBE) on the CAN. The JBE then forwards the signals to the DSC on the PT-CAN.
Depending on the DSC mode, the indicator light in the instrument panel is switched on. The indicator light shows a skidding vehicle with the labelling "OFF" or only a skidding vehicle.
| Item | Explanation |
|---|---|
| 1 | Mode: Dynamic Traction Control DTC and "TRACTION" in the auxiliary instrument on the steering column DSC switched off and "DSC OFF" in the auxiliary instrument on the steering column |
| 2 | Mode: Dynamic Stability Control DSC flashes when controlled lights up in the event of failure |
The DSC receives additional input signals from the following components:
