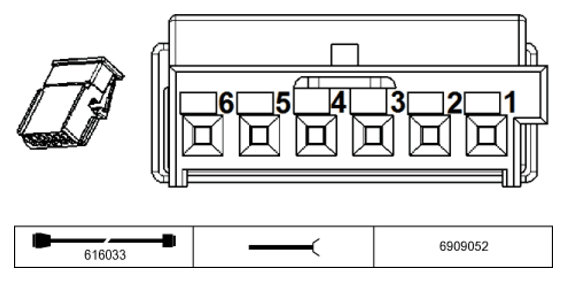

Roof Operating Unit SX14286A Connector End View
Pin Assignments At Plug Connector X14286
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | without lights package Signal, terminal R | Car access system |
| 1 | E | light package Signal, switch lighting green | Footwell module |
| 2 | A | Signal Passenger airbag deactivation lamp | Multiple restraint system control module |
| 3 | E | Signal, terminal 58G | Footwell module |
| 4 | A | Signal, interior light switch | Footwell module |
| 5 | E | with sunroof Signal, terminal 30G | Fuse F16 |
| 5 | E | without sunroof Signal, locator lighting | Footwell module |
| 6 | M | Ground | Ground connection X2184 |
