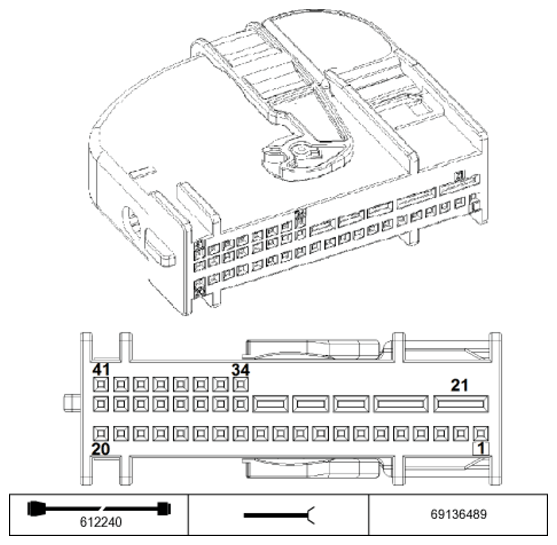

Convertible Top Module A41*1B Connector End View
Pin Assignments At Plug Connector A41*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | E | Hall sensor signal Hall effect sensor of convertible top raised, left | Hall effect sensor of convertible top raised, left |
| 14 | E | Hall sensor signal Hall effect sensor of stowage lock, closed | Hall effect sensor of stowage lock, closed |
| 15 | -- | Not used | |
| 16 | -- | Not used | |
| 17 | -- | Not used | |
| 18 | -- | Not used | |
| 19 | -- | Not used | |
| 20 | -- | Not used | |
| 21 | -- | Not used | |
| 22 | -- | Not used | |
| 23 | A | Activation Left convertible top drive unit | Left convertible top drive unit |
| 24 | M | Shield | Left convertible top drive unit |
| 25 | A | Activation Left convertible top drive unit | Left convertible top drive unit |
| 26 | E | Hall sensor signal Hall effect sensor of convertible top raised, left | Hall effect sensor of convertible top raised, left |
| 27 | E | Hall sensor signal Hall effect sensor of stowage lock, closed | Hall effect sensor of stowage lock, closed |
| 28 | -- | Not used | |
| 29 | -- | Not used | |
| 30 | -- | Not used | |
| 31 | E | Switch signal Convertible-top compartment floor microswitch | Convertible-top compartment floor microswitch |
| 32 | E | Switch signal Convertible-top compartment floor microswitch | Convertible-top compartment floor microswitch |
| 33 | E/A | Body CAN2 bus connection | Terminating resistor |
| 34 | E | Hall sensor signal Left convertible top drive unit | Left convertible top drive unit |
| 35 | E | Hall sensor signal Left convertible top drive unit | Left convertible top drive unit |
| 36 | -- | Not used | |
| 37 | E | Switch signal Interior light, front | Interior light, front |
| 38 | -- | Not used | |
| 39 | E | Power supply, terminal 30B | Fuse F94 |
| 40 | M | Ground | Ground point |
| 41 | E/A | Body CAN2 bus connection | Terminating resistor |
