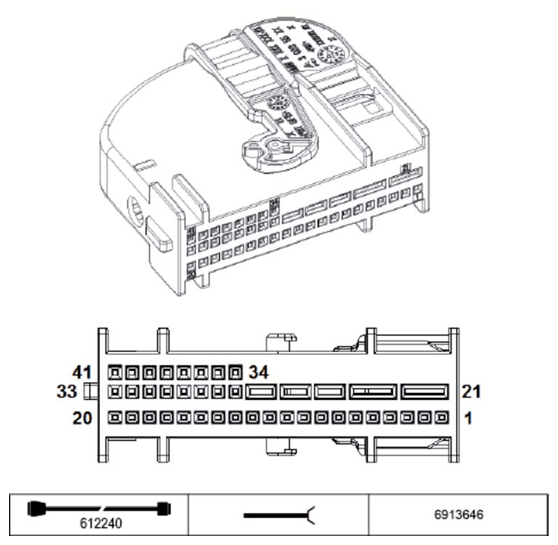

Convertible Top Module A41*3B Connector End View
Pin Assignments At Plug Connector A41*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | -- | Not used | |
| 14 | -- | Not used | |
| 15 | E | Hall sensor signal Hall effect sensor of cowl panel lock drive, open | Hall effect sensor of cowl panel lock drive, open |
| 16 | E | Hall sensor signal Hall effect sensor of cowl panel lock drive, open | Hall effect sensor of cowl panel lock drive, open |
| 17 | E | Hall sensor signal Hall effect sensor, soft top stowed | Hall effect sensor, soft top stowed |
| 18 | E | Hall sensor signal Hall effect sensor, soft top stowed | Hall effect sensor, soft top stowed |
| 19 | -- | Not used | |
| 20 | -- | Not used | |
| 21 | A | Activation Drive unit of folding sunroof and soft top locking | Drive unit of folding sunroof and soft top locking |
| 22 | A | Activation Drive unit of folding sunroof and soft top locking | Drive unit of folding sunroof and soft top locking |
| 23 | A | Activation Right convertible top drive unit | Right convertible top drive unit |
| 24 | M | Shield | Right convertible top drive unit |
| 25 | A | Activation Right convertible top drive unit | Right convertible top drive unit |
| 26 | -- | Not used | |
| 27 | E | Hall sensor signal Right convertible top drive unit | Right convertible top drive unit |
| 28 | E | Hall sensor signal Drive unit of folding sunroof and soft top locking | Drive unit of folding sunroof and soft top locking |
| 29 | E | Hall sensor signal Drive unit of folding sunroof and soft top locking | Drive unit of folding sunroof and soft top locking |
| 30 | E | Hall sensor signal Hall effect sensor of folding sunroof position | Hall effect sensor of folding sunroof position |
| 31 | -- | Not used | |
| 32 | E | Hall sensor signal Hall effect sensor of convertible top raised, right | Hall effect sensor of convertible top raised, right |
| 33 | -- | Not used | |
| 34 | -- | Not used | |
| 35 | E | Hall sensor signal Right convertible top drive unit | Right convertible top drive unit |
| 36 | E | Hall sensor signal Drive unit of folding sunroof and soft top locking | Drive unit of folding sunroof and soft top locking |
| 37 | E | Hall sensor signal Drive unit of folding sunroof and soft top locking | Drive unit of folding sunroof and soft top locking |
| 38 | E | Hall sensor signal Hall effect sensor of folding sunroof position | Hall effect sensor of folding sunroof position |
| 39 | -- | Not used | |
| 40 | E | Hall sensor signal Hall effect sensor of convertible top raised, right | Hall effect sensor of convertible top raised, right |
| 41 | -- | Not used |
