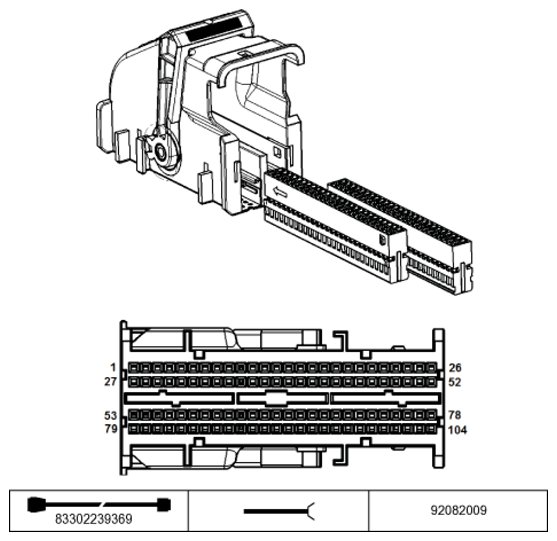

Crash Safety Module A11*1B Connector End View
Pin Assignments At Plug Connector A11*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Signal Airbag sensor, left B-pillar | Airbag sensor, left B-pillar |
| 2 | E | Signal Airbag sensor, left B-pillar | Airbag sensor, left B-pillar |
| 3 | E | Signal Airbag sensor, right B-pillar | Airbag sensor, right B-pillar |
| 4 | E | Signal Airbag sensor, right B-pillar | Airbag sensor, right B-pillar |
| 5 | E | Signal Airbag sensor, front right door | Airbag sensor, front right door left-hand drive |
| 5 | E | Signal Airbag sensor, front left door | Airbag sensor, front left door right-hand drive |
| 6 | E | Signal Airbag sensor, front right door | Airbag sensor, front right door left-hand drive |
| 6 | E | Signal Airbag sensor, front left door | Airbag sensor, front left door right-hand drive |
| 7 | E | Signal Airbag sensor, front right door | Airbag sensor, front right door right-hand drive |
| 7 | E | Signal Airbag sensor, front left door | Airbag sensor, front left door left-hand drive |
| 8 | E | Signal Airbag sensor, front left door | Airbag sensor, front left door left-hand drive |
| 8 | E | Signal Airbag sensor, front right door | Airbag sensor, front right door right-hand drive |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | E | Signal Driver's seat belt buckle contact | Driver's seat belt buckle contact |
| 14 | E | Signal Passenger's seat belt buckle contact | Passenger's seat belt buckle contact |
| 15 | E | Signal Seat-position sensor, driver | Seat-position sensor, driver country-dependent |
| 15 | E | Signal Seat belt buckle contact, rear left | Seat belt buckle contact, rear left country-dependent |
| 16 | E | Signal Seat belt buckle contact, rear centre | Seat belt buckle contact, rear centre country-dependent |
| 16 | E | Signal Seat-position sensor, front passenger | Seat-position sensor, front passenger country-dependent |
| 17 | E | Signal Seat belt buckle contact, rear right | Seat belt buckle contact, rear right country-dependent |
| 18 | E | Signal Seat belt buckle contact, third row of seats, left | Seat belt buckle contact, third row of seats, left F46 only |
| 18 | E | Signal Seat belt buckle contact, rear centre | Seat belt buckle contact, rear centre not F46 |
| 19 | M | Ground | Ground connector |
| 20 | -- | Not used | |
| 21 | -- | Not used | |
| 22 | E | Power supply, terminal 30B | A258 Body Domain Controller, module 3 |
| 23 | -- | Not used | |
| 24 | E/A | FlexRay bus signal | Dynamic stability control (DSC) |
| 25 | E/A | FlexRay bus signal | Crash safety module |
| 26 | E/A | FlexRay bus signal | Crash safety module |
| 27 | E | Signal Retractor tensioner, driver | Retractor tensioner, driver |
| 28 | E | Signal Retractor tensioner, driver | Retractor tensioner, driver |
| 29 | E | Signal Retractor tensioner, front passenger | Retractor tensioner, front passenger |
| 30 | E | Signal Retractor tensioner, front passenger | Retractor tensioner, front passenger |
| 31 | A | Activation Gas generator for driver side airbag | Gas generator for driver side airbag |
| 32 | A | Activation Gas generator for driver side airbag | Gas generator for driver side airbag |
| 33 | A | Activation Gas generator for front passenger side airbag | Gas generator for front passenger side airbag |
| 34 | A | Activation Gas generator for front passenger side airbag | Gas generator for front passenger side airbag |
| 35 | A | Activation Gas generator for left head airbag | Gas generator for left head airbag non-F57 |
| 35 | A | Activation Gas generator for left rollover protection | Gas generator for left rollover protection only F57 |
| 36 | A | Activation Gas generator for left head airbag | Gas generator for left head airbag non-F57 |
| 36 | A | Activation Gas generator for left rollover protection | Gas generator for left rollover protection only F57 |
| 37 | A | Activation Gas generator for right head airbag | Gas generator for right head airbag non-F57 |
| 37 | A | Activation Gas generator for right rollover protection | Gas generator for right rollover protection only F57 |
| 38 | A | Activation Gas generator for right head airbag | Gas generator for right head airbag non-F57 |
| 38 | A | Activation Gas generator for right rollover protection | Gas generator for right rollover protection only F57 |
| 39 | -- | Not used | |
| 40 | -- | Not used | |
| 41 | E | Signal Safety battery terminal | Safety battery terminal Hybrid |
| 42 | E | Signal Safety battery terminal | Safety battery terminal Hybrid |
| 43 | -- | Not used | |
| 44 | -- | Not used | |
| 45 | E | Signal Passenger's seat occupancy detection | Passenger's seat occupancy detection not USA |
| 46 | E | Signal Passenger's seat occupancy detection | Passenger's seat occupancy detection not USA |
| 47 | A | Crash signal | Telematic Communication Box |
| 48 | A | Activation, LED function indicator Passenger airbag deactivation | Roof function centre only F5x |
| 48 | E | Activation, LED function indicator Passenger airbag deactivation | Interior light, front not F5x |
| 49 | A | Crash signal | Fuel pump control (EKPS) |
| 50 | E/A | FlexRay bus signal | Dynamic stability control (DSC) |
| 51 | E/A | FlexRay bus signal | Crash safety module |
| 52 | E/A | FlexRay bus signal | Crash safety module |
| 53 | A | Activation Pedestrian guard actuator, front left | Pedestrian guard actuator, front left |
| 54 | A | Activation Pedestrian guard actuator, front left | Pedestrian guard actuator, front left |
| 55 | A | Activation Pedestrain guard actuator, front right | Pedestrain guard actuator, front right |
| 56 | A | Activation Pedestrain guard actuator, front right | Pedestrain guard actuator, front right |
| 57 | A | Activation Gas generator for front left belt force limiter | Gas generator for front left belt force limiter |
| 58 | A | Activation Gas generator for front left belt force limiter | Gas generator for front left belt force limiter |
| 59 | A | Activation Gas generator for front right belt force limiter | Gas generator for front right belt force limiter |
| 60 | A | Activation Gas generator for front right belt force limiter | Gas generator for front right belt force limiter |
| 61 | A | Activation Pedestrian guard actuator, rear left | Pedestrian guard actuator, rear left country-dependent |
| 61 | A | Activation Gas generator for rear left belt tensioner | Gas generator for rear left belt tensioner country-dependent |
| 62 | A | Activation Gas generator for rear left belt tensioner | Gas generator for rear left belt tensioner country-dependent |
| 62 | A | Activation Pedestrian guard actuator, rear left | Pedestrian guard actuator, rear left country-dependent |
| 63 | A | Activation Gas generator for rear right belt tensioner | Gas generator for rear right belt tensioner country-dependent |
| 63 | A | Activation Pedestrian guard actuator, rear right | Pedestrian guard actuator, rear right country-dependent |
| 64 | A | Activation Gas generator for rear right belt tensioner | Gas generator for rear right belt tensioner country-dependent |
| 64 | A | Activation Pedestrian guard actuator, rear right | Pedestrian guard actuator, rear right country-dependent |
| 65 | A | Activation Pedestrian guard actuator, rear left | Pedestrian guard actuator, rear left |
| 66 | A | Activation Pedestrian guard actuator, rear left | Pedestrian guard actuator, rear left |
| 67 | A | Activation Pedestrian guard actuator, rear right | Pedestrian guard actuator, rear right |
| 68 | A | Activation Pedestrian guard actuator, rear right | Pedestrian guard actuator, rear right |
| 69 | -- | Not used | |
| 70 | -- | Not used | |
| 71 | E | Signal Passenger's seat occupancy detection | Passenger's seat occupancy detection USA |
| 72 | E/A | Local interconnect network data bus | Passenger's seat occupancy detection USA |
| 73 | E | Signal Passenger airbag deactivation | Interior light, front only F4x |
| 74 | E | Signal Pedestrian sensor, right | Pedestrian sensor, right |
| 75 | E | Signal Pedestrian sensor, right | Pedestrian sensor, right |
| 76 | E | Signal Pedestrian sensor, left | Pedestrian sensor, left |
| 77 | E | Signal Pedestrian sensor, left | Pedestrian sensor, left |
| 78 | E | Wake-up signal, terminal 15 | Connector, terminal 15 wake-up signal |
| 79 | -- | Not used | |
| 80 | -- | Not used | |
| 81 | -- | Not used | |
| 82 | -- | Not used | |
| 83 | -- | Not used | |
| 84 | -- | Not used | |
| 85 | -- | Not used | |
| 86 | -- | Not used | |
| 87 | -- | Not used | |
| 88 | -- | Not used | |
| 89 | -- | Not used | |
| 90 | -- | Not used | |
| 91 | -- | Not used | |
| 92 | -- | Not used | |
| 93 | -- | Not used | |
| 94 | -- | Not used | |
| 95 | -- | Not used | |
| 96 | -- | Not used | |
| 97 | -- | Not used | |
| 98 | E | Signal Seat belt buckle contact, rear centre | Seat belt buckle contact, rear centre not F46 |
| 98 | E | Signal Seat belt buckle contact, third row of seats, right | Seat belt buckle contact, third row of seats, right F46 only |
| 99 | -- | Not used | |
| 100 | E | Signal Airbag front sensor, left | Airbag front sensor, left USA |
| 101 | E | Signal Airbag front sensor, left | Airbag front sensor, left USA |
| 102 | E | Signal Airbag front sensor, right | Airbag front sensor, right USA |
| 103 | E | Signal Airbag front sensor, right | Airbag front sensor, right USA |
| 104 | -- | Not used |
