41 00... Gap dimensions, body

WARNING: This page is about a different variant/trim than selected.

NOTE: The dimensions specified are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform join.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

Adjust headlight and tail light with constant all-round gap (visually).

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

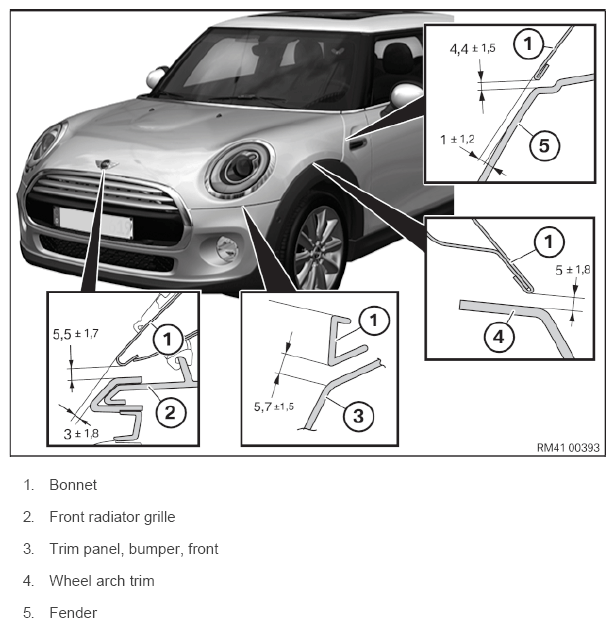

Fig 1: Checking Body Gap Dimensions (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

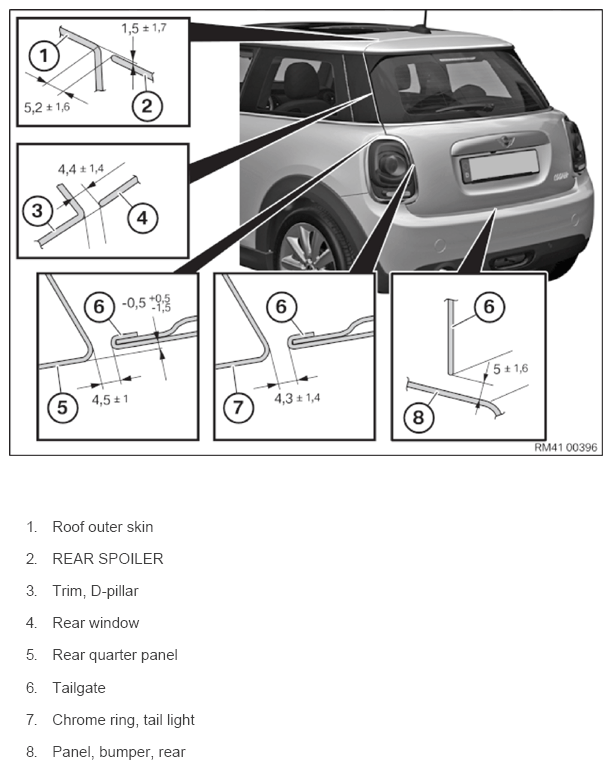

Fig 2: Checking Body Gap Dimensions (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

+ dimensions are a glass sunroof protrusion.

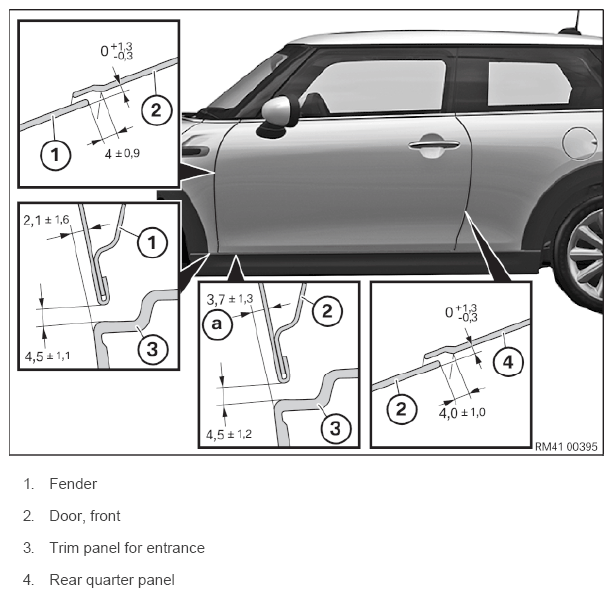

Fig 3: Checking Body Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (a) 3.7 reduces to the rear to 2.6 in direction of travel

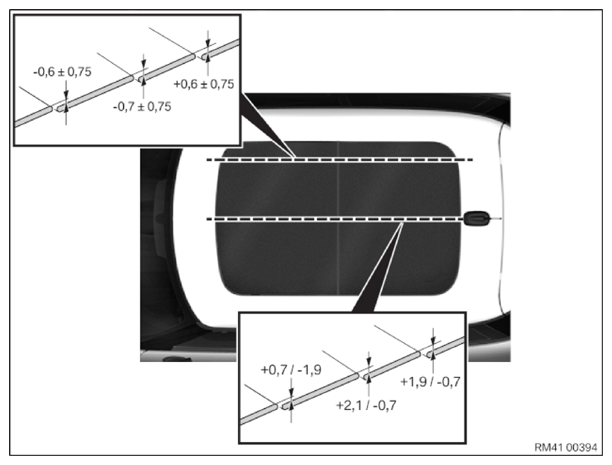

Fig 4: Checking Body Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.
