41 00... Installation solution for straight shank/hexagon rivet nut

Protective measures!

• Wear safety goggles
• Wear protective gloves

Hexagon/straight shank rivet nut (up to thread 8) with hand rivet gun ZS308

Failure to comply with these instructions may result in the drill bit slipping and causing significant paint damage.

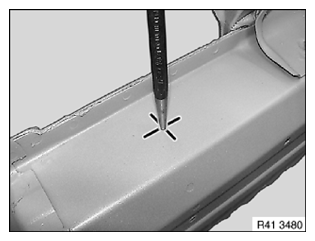

Fig 1: Marking Position Of Bore And Punch-Mark Component

Courtesy of BMW OF NORTH AMERICA, INC.

1. Mark position of bore and then punch-mark component
   CAUTION: If the determined drill bit diameter is not observed:
   • the knurling on the straight shank rivet nut is rendered useless
   • the component will be damaged when the straight shank rivet nut is inserted

   Determining suitable drill bit:

   Depending on the rivet nut shaft diameter, the next drill bit diameter higher (5/10 step) can be used.

   E.g. with a shaft diameter of 10.1 mm, the 10.5 mm drill bit can be used.

   The 11.0 mm drill bit must not be used.

2. Drill bore with appropriate drill bit and deburr, pilot-drill with a smaller drill bit if necessary

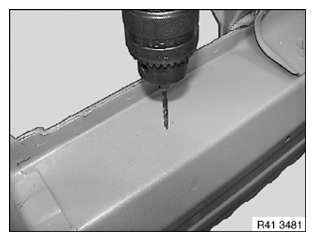

   Fig 2: Drilling Bore With Drill Bit And Deburr

   Courtesy of BMW OF NORTH AMERICA, INC.
3. Clean component, eliminate paint damage if necessary

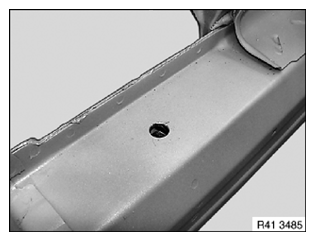

   Fig 3: Cleaning Component And Eliminate Paint Damage

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: To avoid corrosion, stop chips/shavings with cavity sealant.

   Follow notes on CORROSION PROTECTION .

4. Preserving cavity

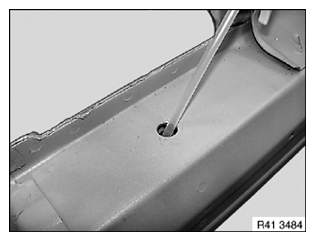

   Fig 4: Preserving Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: Follow manufacturer's operating instructions.

   Make sure straight shank rivet nut correctly contacts component.

5. Set rivet nut with hand rivet gun

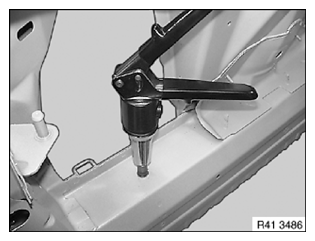

Fig 5: Setting Rivet Nut With Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

Make sure hexagon rivet nut correctly contacts component.

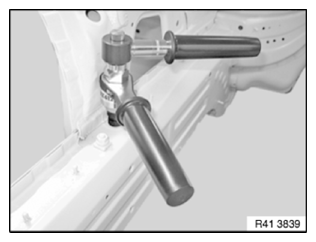

Fig 6: Setting Rivet Nut With Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

Set rivet nut with hand rivet gun
