41 00... Repair solution for straight shank/hexagon rivet nut

Protective measures!

• Wear safety goggles
• Wear protective gloves

1. Carefully spot-drill rivet head with a larger drill bit/countersink

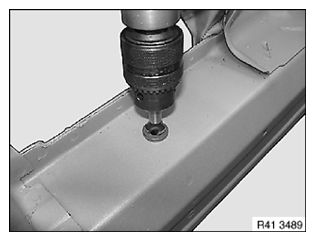

   Fig 1: Drilling Out Rivet Head

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: Avoid paint damage
2. Knock rivet head away with a chisel

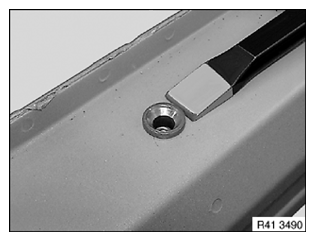

   Fig 2: Knocking Rivet Head With Chisel

   Courtesy of BMW OF NORTH AMERICA, INC.
3. Punch through rivet shank into cavity, remove if necessary

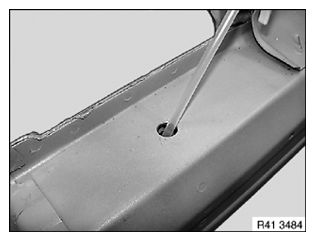

   Fig 3: Punching Through Rivet Shank Into Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.
4. Clean component, eliminate paint damage if necessary

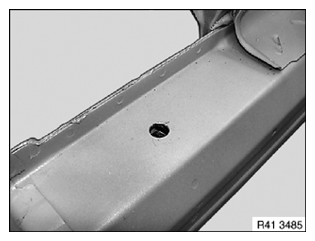

   Fig 4: Cleaning Component And Eliminate Paint Damage

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank can be removed:

   IMPORTANT: To avoid corrosion, stop chips/shavings with cavity sealant.

   Follow notes on CORROSION PROTECTION .

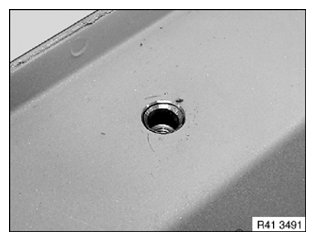

   Fig 5: Preserving Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.
5. Preserving cavity

   If the rivet shank cannot be removed:

   WARNING: Injury hazard!

   Observe notes on CAVITY FOAM .

   IMPORTANT: To avoid corrosion and rattling noises, stop chips/shavings and rivet nut shank with cavity foam.

   Remove foam remnants with isohexane (cleaning benzene).

   Fig 6: Preserving Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.
6. Stop rivet shank by means of specific foaming
7. Set rivet nut with hand rivet gun

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

Make sure rivet nut correctly contacts component.

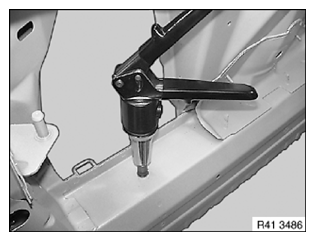

Fig 7: Setting Rivet Nut With Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

Make sure rivet nut correctly contacts component.

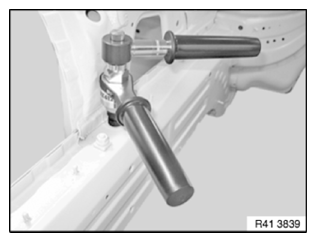

Fig 8: Setting Rivet Nut With Hand Rivet Gun

Courtesy of BMW OF NORTH AMERICA, INC.
