41 00... Replacing bolts

WARNING: This page is about a different variant/trim than selected.

NOTE: On BMW and MINI bodies, various welded and pushed in bolts are being used.
Available repair options will be described below.

Single ball/double ball (version 1):

Grind off any residues of the single ball (1), if applicable.

Drill hole with diameter 7 mm.

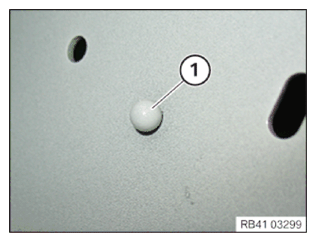

Fig 1: Single Ball Residues

Courtesy of BMW OF NORTH AMERICA, INC.

Set blind rivet nut (1).

Screw in single ball with thread until a height of 5 mm (double ball 10 mm) is reached.

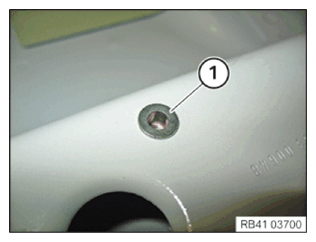

Fig 2: Blind Rivet Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Single ball/double ball (version 2):

Grind off any residues of the single ball (1), if applicable.

Clean area with solvent cleaner R1.

Fig 3: Single Ball Residues

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bonding surface of repair element single ball (1) with solvent cleaner R1.

Bond repair element optionally with adhesive K1, K5 or window pane adhesive at the same position.

Fig 4: Repair Element Single Ball Bonding Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Coarse threaded bolt (version 1):

Grind off any residues of the coarse threaded bolt (1), if applicable.

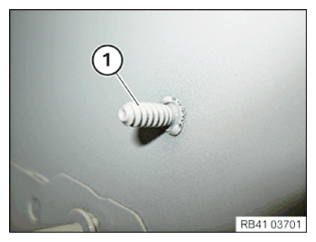

Fig 5: Coarse Threaded Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Spot weld coarse threaded bolt to same position.

Fig 6: Spot Weld Coarse Threaded Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Coarse threaded bolt (version 2):

Grind off any residues of the coarse threaded bolt (1), if applicable.

Drill hole with diameter 7 mm.

Set blind rivet coarse threaded bolt using riveting pliers.

Fig 7: Blind Rivet Coarse Threaded Bolt
