TRSVC: Control unit for all-round vision camera
The TRSVC control unit is located in the driver's footwell. The light points, light colours and light intensities picked up by the video camera are evaluated by the TRSVC control unit. The bumper camera is connected to the all-round vision camera control unit by a 5-pin line. The all-round vision camera control unit is connected to the body CAN. The TRSVC control unit is supplied by the rear power distribution box via terminal 15N.

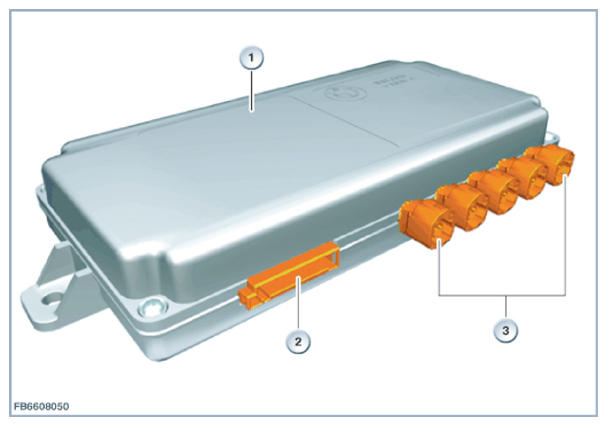

| Item | Explanation |
|---|---|
| 1 | All-round vision camera control unit (TRSVC) |
| 2 | Plug connections for main wiring harness |
| 3 | Plug connections for cameras (maximum equipment) |
