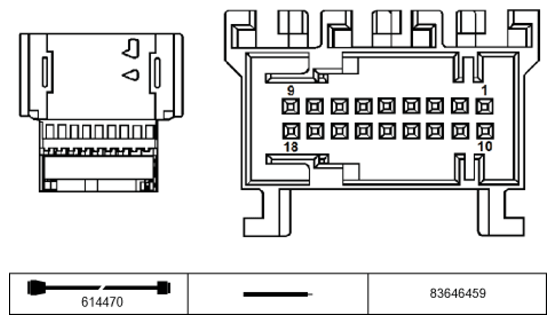

Base Plate X29*1B Connector End View
Pin Assignments At Plug Connector X29*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | M | Ground | Ground point |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | E | Power supply, terminal 30B | Fuse F79 |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | E/A | K-CAN2 bus connection | Terminating resistor |
| 9 | E/A | K-CAN2 bus connection | Terminating resistor |
| 10 | M | Ground | Ground point |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | E | Supply, terminal 15 | Fuse F51 |
| 14 | -- | Not used | |
| 15 | -- | Not used | |
| 16 | -- | Not used | |
| 17 | E/A | Local interconnect network data bus | ID reader |
| 18 | E | Supply, terminal 30 | Fuse F101 |
