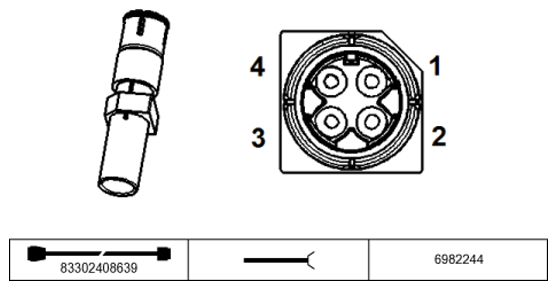

Instrument Cluster Control Unit A71*3B Connector End View
Pin Assignments At Plug Connector A71*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | APIX data cable | Head-Up Display |
| 2 | A | APIX data cable | Head-Up Display |
| 3 | A | APIX data cable | Head-Up Display |
| 4 | A | APIX data cable | Head-Up Display |
| 5 | M | Shield | Head-Up Display |
