41 00... Frame reference dimension, body

Dimensions in mm.

Dimensional tolerances:

• ≤ 1000 mm ± 1.5 mm
• ≥ 1000 mm ± 2.5 mm

The checkpoints shown serve to check the body and the set of attachments.

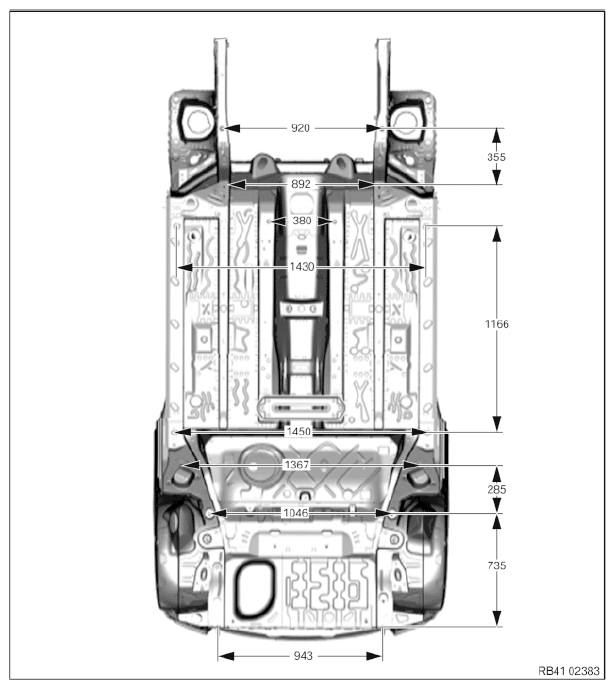

Underbody view 1

Fig 1: Body Frame Reference Dimension (Underbody View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

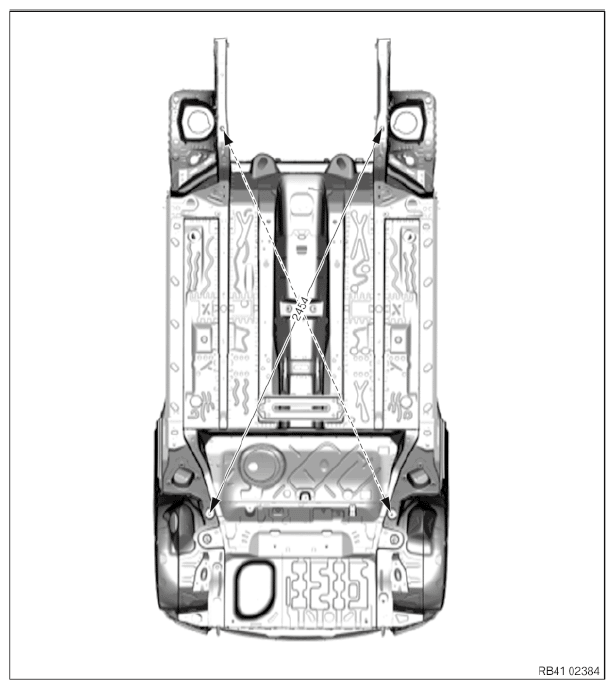

Underbody view 2

Fig 2: Body Frame Reference Dimension (Underbody View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

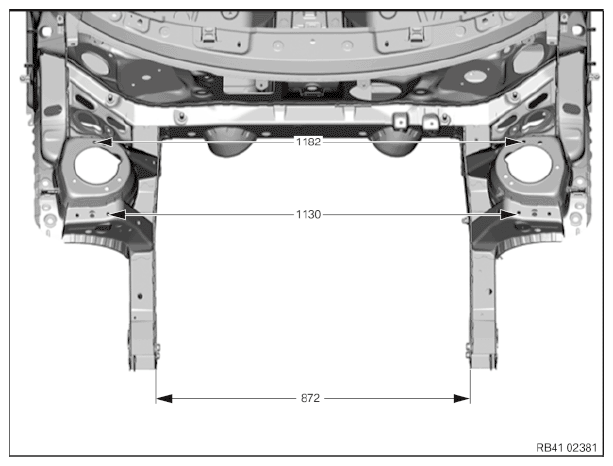

Top view, front end

Fig 3: Body Frame Reference Dimension (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

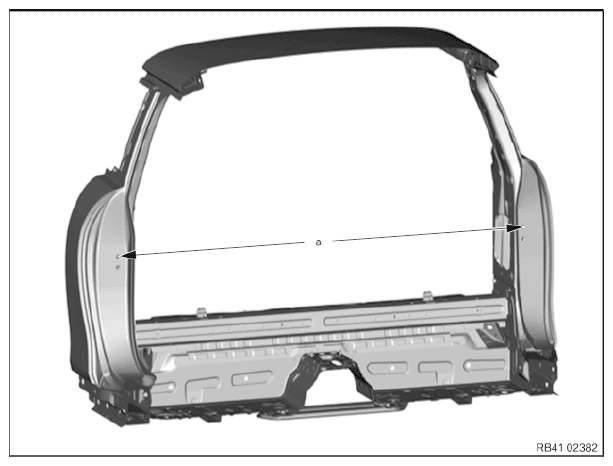

View, B-pillar

Fig 4: Body Frame Reference Dimension (View, B-Pillar)

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement "a"=1442 mm between attachment points of door checks.
