41 00... Gap dimensions, body

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

Adjust headlight and tail light with constant all-round gap (visually).

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

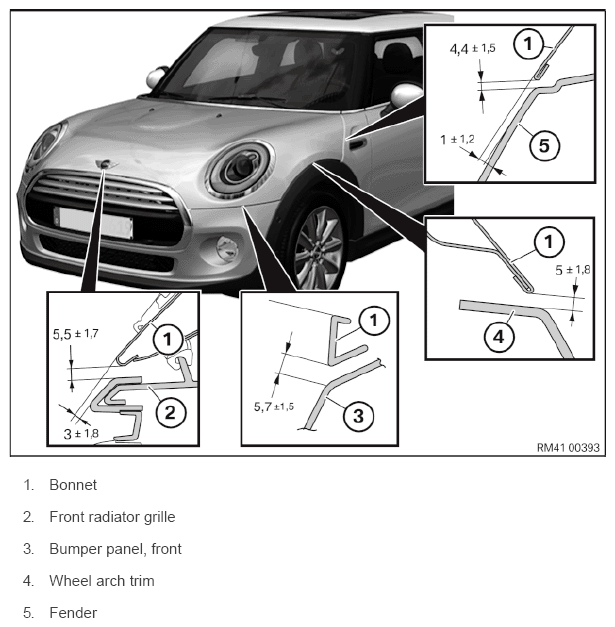

Fig 1: Vehicle Body Gap Dimensions (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

"+" dimensions are a glass sunroof protrusion.

"-" dimensions are a glass sunroof recessed.

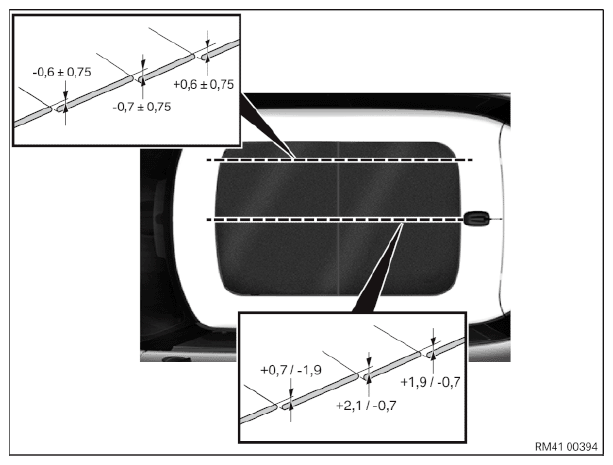

Fig 2: Vehicle Body Gap Dimensions (Sunroof)

Courtesy of BMW OF NORTH AMERICA, INC.

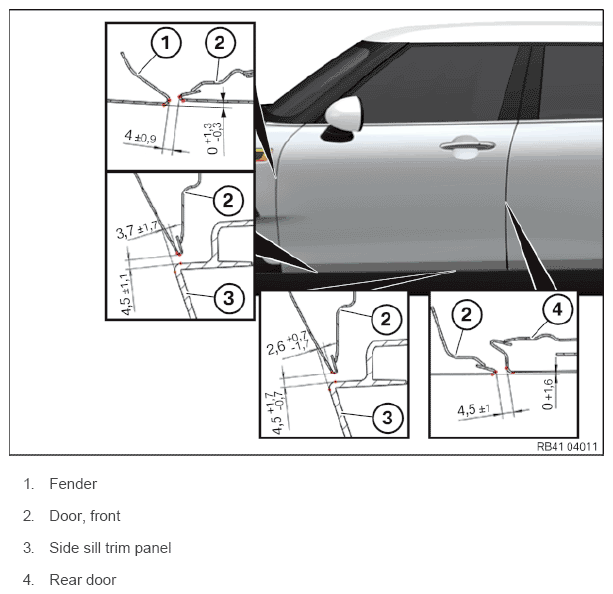

Fig 3: Vehicle Body Gap Dimensions (Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Vehicle Body Gap Dimensions (Rear-Side)

Courtesy of BMW OF NORTH AMERICA, INC.

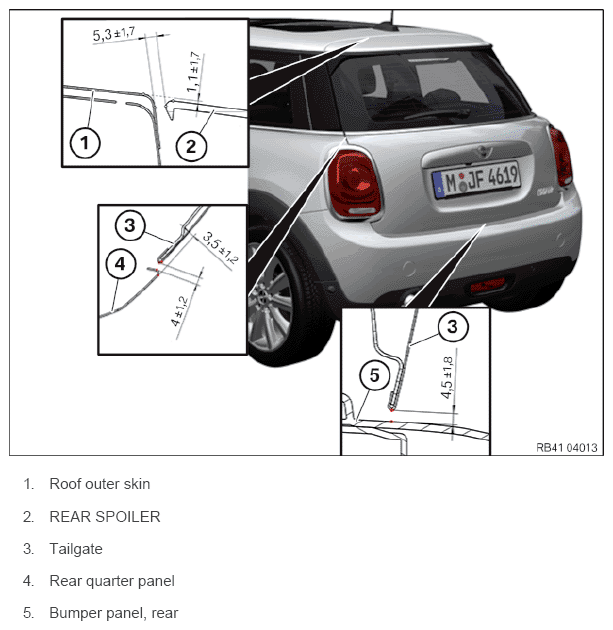

Fig 5: Vehicle Body Gap Dimensions (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.
