41 00... Replacing blind rivets

WARNING: This page is about a different variant/trim than selected.

Special tools required:

IMPORTANT: Lay out protective mats to protect the interior equipment against shavings from the drilled-out rivets and damage.

Lay out protective mats in the relevant working area:

Dashboard
Entrance area
Passenger compartment

Fig 1: Identifying Protective Mats

Courtesy of BMW OF NORTH AMERICA, INC.

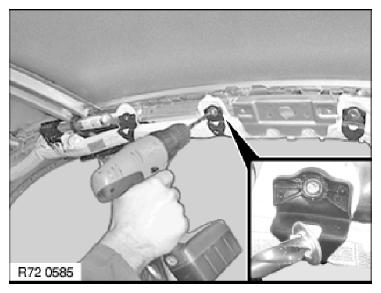

Schematic diagram of folding pack holder for head airbag:

Drill off rivet plate down to rivet shank with a 10 mm twist drill bit.

Fig 2: Drilling Off Rivet Plate Down To Rivet Shank

Courtesy of BMW OF NORTH AMERICA, INC.

Described for grab handle holder:

Drill off rivet plate down to rivet shank with a 10 mm twist drill bit.

Fig 3: Drilling Off Rivet Plate Down To Rivet Shank

Courtesy of BMW OF NORTH AMERICA, INC.

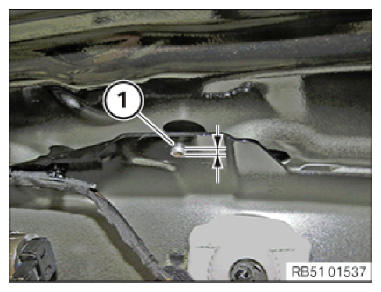

Drill out all blind rivet protrusions (1) up to the body.

Fig 4: Identifying Blind Rivet Protrusions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Prime damaged paintwork on side frame.

NOTE: Depending on accessibility, the rivet heads will have to be removed using special tool 2 348 128 or 72 1 210 .
In areas that cannot be reached using special tools, CAVITY FOAM HS3 must first be applied around the rivet head before the rivet head is then punched out immediately.

Removal of rivet head with special tool 2 348 128:

Press off rivet heads (1) using special tool 2 348 128 and remove.

Fig 5: Pressing Rivet Heads Using Special Tool (2 348 128)

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of rivet head with special tool 72 1 210:

Shank (1) of special tool 72 1 210 is flexible and can be adapted to the relevant body contours.

NOTE: Insert butyl in the collecting tray (2) to secure rivet heads and prevent them from falling out.

Fig 6: Identifying Shank And Collecting Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 72 1 210 through bore in body next to attachment points.

Position special tool from rear on rivet head in cavity.

NOTE: A second person will be needed to help hold the special tool on the rivet head during the driving-out operation.
Make sure collecting tray is correctly fitted on rivet head.

Fig 7: Inserting Special Tool (72 1 210) Through Bore Hole In Body

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out stem with hammer and 6 mm punch.

Carefully feed special tool out of body so that rivet head does not fall out of collecting tray.

NOTE:

If the rivet falls out of the collecting tray into the side frame when the special tool is fed out, this area must be generously filled with foam.

For details of procedure for filling cavities with foam, see further operations.

Use cavity sealant for foam filling.

Cavity foam may also be used if required.

Fit tube to foam can.

Push the hose in through the pillar holes.

Fill cavity with a filling material.

WARNING: Empty foam can completely onto cardboard and after hardening dispose of foam and can in residual waste.

Can may burst if not completely emptied.

Fig 8: Identifying Foam Can

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of rivet gun:

Riveting of gas generator housing and holders for folding pack with rivet gun (refer to WORKSHOP EQUIPMENT ).

The interchangeable head is changed for the different work operations.

Riveting of gas generator housing with:

17/36 nosepiece and short shank
Riveting of holders for folding pack:
17/40 nosepiece and long shank

Fig 9: Identifying Nosepieces And Shanks

Courtesy of BMW OF NORTH AMERICA, INC.
