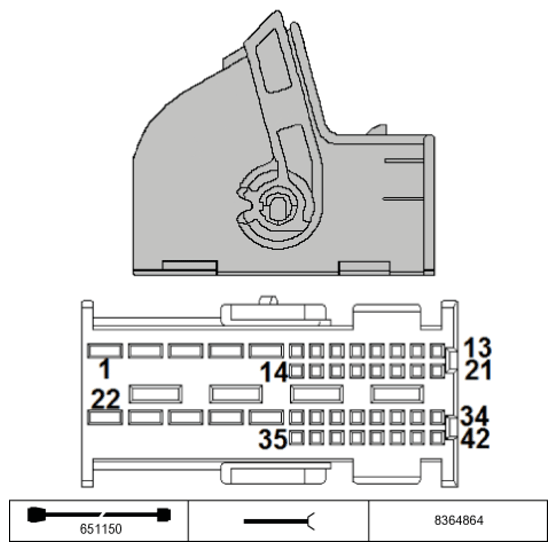

Body Domain Controller A258*5B Connector End View
Pin Assignments At Plug Connector A258*5B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Activation Rear wiper | Rear wiper |
| 2 | A | Activation, power window drive | Power window drive, passenger's side, rear |
| 3 | A | Activation, power window drive | Power window drive, passenger's side, rear |
| 4 | A | Activation, power window drive | Power window drive, Driver's side, rear |
| 5 | A | Activation, power window drive | Power window drive, Driver's side, rear |
| 6 | A | Activation, power window drive | Power window drive, passenger's side, rear |
| 7 | A | Activation, power window drive | Power window drive, passenger's side, rear |
| 8 | A | Activation, power window drive | Power window drive, passenger's side, rear |
| 9 | E | Signal Power window switch, passenger's side, rear | Power window switch, passenger's side, rear |
| 10 | A | Activation, brake light | Tail light, outer right |
| 11 | A | Activation, flashing indicator lamp | Tail light, outer right |
| 12 | A | Activation, rear fog light | Rear fog light 2 |
| 13 | A | Activation, reversing light | Tail light, outer right |
| 14 | A | Activation, power window drive | Power window drive, Driver's side, rear |
| 15 | A | Activation, power window drive | Power window drive, Driver's side, rear |
| 16 | A | Activation, power window drive | Power window drive, Driver's side, rear |
| 17 | E | Signal Door lock, rear Driver's side | Door lock, rear Driver's side |
| 18 | -- | Not used | |
| 19 | A | Activation, flashing indicator lamp | Tail light, outer left |
| 20 | A | Activation, rear fog light | Rear fog light |
| 21 | A | Activation, reversing light | Tail light, outer left |
| 22 | A | Activation Rear window defogger | Rejector circuit 2, rear window defogger |
| 23 | -- | Not used | |
| 24 | -- | Not used | |
| 25 | M | Ground | Ground point |
| 26 | M | Ground | Ground point |
| 27 | E | Signal Fuel level sensor | Fuel level sensor |
| 28 | A | Activation Rear wiper | Rear wiper |
| 29 | -- | Not used | |
| 30 | -- | Not used | |
| 31 | -- | Not used | |
| 32 | A | Activation, brake light | Auxiliary brake light |
| 33 | A | Activation Dynamic brake light | Tail light, outer right |
| 34 | A | Activation, tail light | Side marker light, rear right |
| 35 | E | Signal Fuel level sensor | Fuel level sensor |
| 36 | -- | Not used | |
| 37 | -- | Not used | |
| 38 | -- | Not used | |
| 39 | -- | Not used | |
| 40 | A | Activation, licence plate light | Cable connector X46*1 V |
| 41 | A | Activation Dynamic brake light | Tail light, outer left |
| 42 | A | Activation, tail light | Tail light, outer left |
