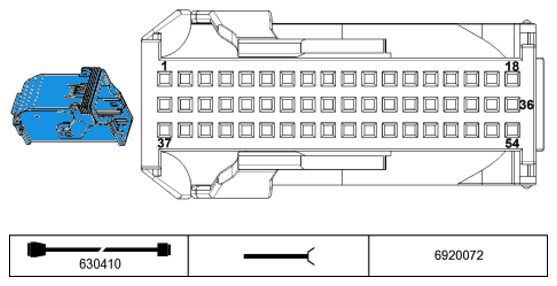

Body Domain Controller A258*9B Connector End View
Pin Assignments At Plug Connector A258*9B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | E | Aerial signal, comfort access | Exterior aerial, Driver's side |
| 10 | E | Aerial signal, comfort access | Exterior aerial, front passenger side |
| 11 | E | Aerial signal, comfort access | Luggage compartment aerial, left |
| 12 | E | Aerial signal, comfort access | Bumper aerial |
| 13 | -- | Not used | |
| 14 | -- | Not used | |
| 15 | E | Signal, electronic outer door handle module | Electronic outer door handle module, driver |
| 16 | E | Signal, electronic outer door handle module | Electronic outer door handle module, passenger |
| 17 | -- | Not used | |
| 18 | -- | Not used | |
| 19 | -- | Not used | |
| 20 | -- | Not used | |
| 21 | -- | Not used | |
| 22 | -- | Not used | |
| 23 | -- | Not used | |
| 24 | -- | Not used | |
| 25 | -- | Not used | |
| 26 | -- | Not used | |
| 27 | E | Aerial signal, comfort access | Exterior aerial, Driver's side |
| 28 | E | Aerial signal, comfort access | Exterior aerial, front passenger side |
| 29 | E | Aerial signal, comfort access | Luggage compartment aerial, left |
| 30 | E | Aerial signal, comfort access | Bumper aerial |
| 31 | -- | Not used | |
| 32 | -- | Not used | |
| 33 | E | Signal, electronic outer door handle module | Electronic outer door handle module, driver |
| 34 | E | Signal, electronic outer door handle module | Electronic outer door handle module, passenger |
| 35 | -- | Not used | |
| 36 | -- | Not used | |
| 37 | -- | Not used | |
| 38 | -- | Not used | |
| 39 | -- | Not used | |
| 40 | -- | Not used | |
| 41 | -- | Not used | |
| 42 | -- | Not used | |
| 43 | -- | Not used | |
| 44 | -- | Not used | |
| 45 | -- | Not used | |
| 46 | -- | Not used | |
| 47 | -- | Not used | |
| 48 | -- | Not used | |
| 49 | A | Signal Locator light and ambient light | Connector, locator light and ambient light |
| 50 | A | Signal Locator light and ambient light | Connector, locator light and ambient light |
| 51 | A | Signal Locator light and ambient light | Connector, locator light and ambient light |
| 52 | A | Activation, courtesy lighting | Connector, ground lights |
| 53 | -- | Not used | |
| 54 | A | Activation, interior light | Connector, interior light |
