Functional networking

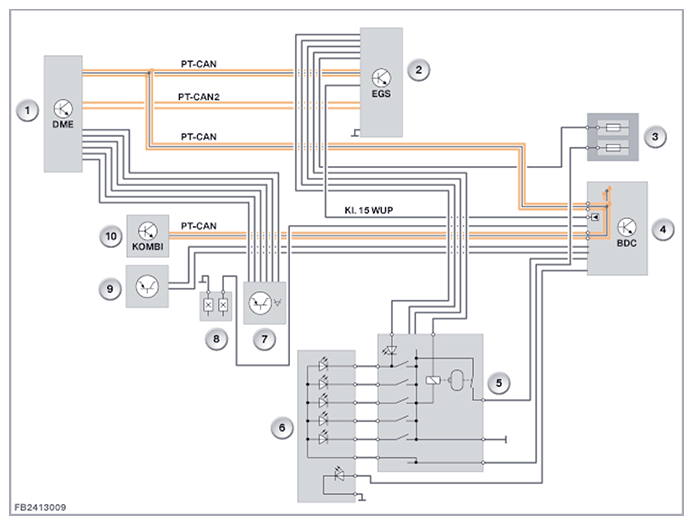

The functional networking of the electronic transmission control is shown below.
| Item | Explanation |
|---|---|
| 1 | Digital engine electronics |
| 2 | Electronic transmission control (EGS) |
| 3 | Front power distribution box, passenger's side |
| 4 | Body Domain Controller (BDC) |
| 5 | Selector lever |
| 6 | Gear indicator light |
| 7 | Accelerator pedal module |
| 8 | Brake light switch |
| 9 | Steering column switch cluster |
| 10 | Instrument panel (KOMBI) |
