Bonnet contact switch
The engine compartment lid contact switch is included in the calculations of the automatic engine start-stop as an input signal. If the engine compartment lid is open, the engine is not started or stopped by the automatic engine start-stop.

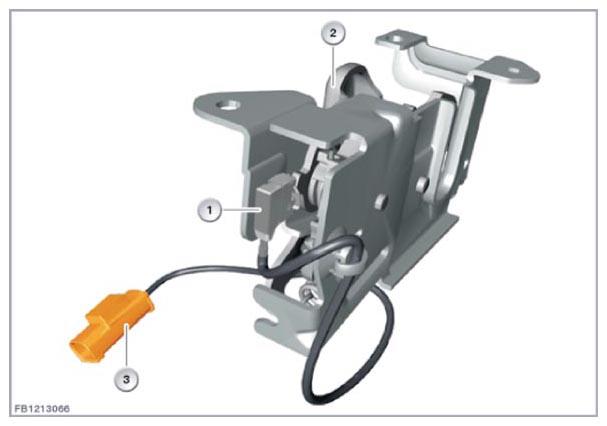

The following graphic shows the engine compartment lid contact switch using the example of F01.
| Item | Explanation |
|---|---|
| 1 | Bonnet contact switch |
| 2 | Engine compartment lid catch front left |
| 3 | two pin plug connection |
