Structure and inner electrical connection

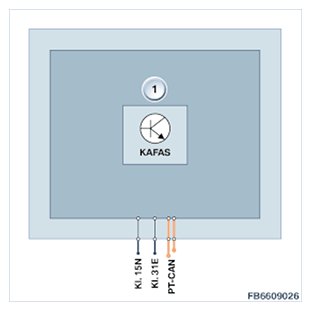

The video camera is connected to the KAFAS control unit by means of a 12-pin line. The KAFAS control unit is connected to the PT CAN.
The KAFAS control unit is supplied via terminal 15N by the front power distribution box.
| Item | Explanation |
|---|---|
| 1 | Camera-based driver support systems (KAFAS) |
Pin assignments
The graphic above shows only the supply and bus connection. The current pin assignment is located in the wiring diagrams in the ISTA diagnosis system. Click on the component code in the wiring diagram to activate the "Installation location" and "Pin assignment" tabs.
