Structure and inner electrical connection

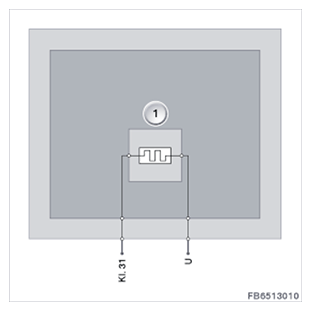

The KAFAS camera heating is connected with the camera-based driver support systems control unit via a three-pin plug connection.
| Item | Explanation |
|---|---|
| 1 | Camera-based driver support systems camera heating |
PIN ASSIGNMENT SPECIFICATION
| Pin | Explanation |
|---|---|
| Kl. 31 | Terminal 31 ground connection (via KAFAS control unit) |
| U | Voltage supply (via camera-based driver support systems control unit) |
| 1 pin not used. | |
