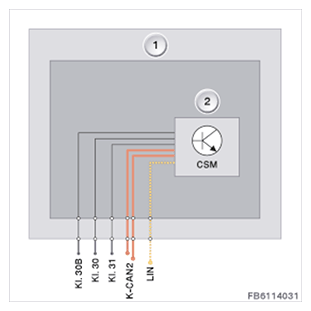

Structure and inner electrical connection
The Car Sharing Module (CSM) is locked in the base plate. A special tool is required to unlock it.
The connections on the base plate are looped through to the Car Sharing Module.
The Car Sharing Module (CSM) is supplied with terminal 30 and terminal 30B.
| Item | Explanation |
|---|---|
| 1 | Base plate |
| 2 | Car sharing module (CSM) |
Pin assignments
The graphic above shows only the supply and bus connection. The current pin assignment is recorded on the wiring diagrams in the ISTA diagnosis system (Integrated Service Technical Application). Click on the component code in the wiring diagram to activate the "Installation location" and "Pin assignment" tabs.
