Functional description
The central instrument can be personalized in the form of light animations. The following functions can be represented:
- Basic displays, e.g. speed, engine speed, ambient light
- Operating feedback, e.g. volume control or climate control
- Heartbeat for locking the vehicle
- System messages, e.g. phone calls, USB coupling, Check Control messages
The greater the number of optional equipment items in the vehicle, the larger the number of personalized displays that can be set for the central instrument.
The basic display and displays for an event can be set by means of a settings menu. The displays for an event override the basic display.

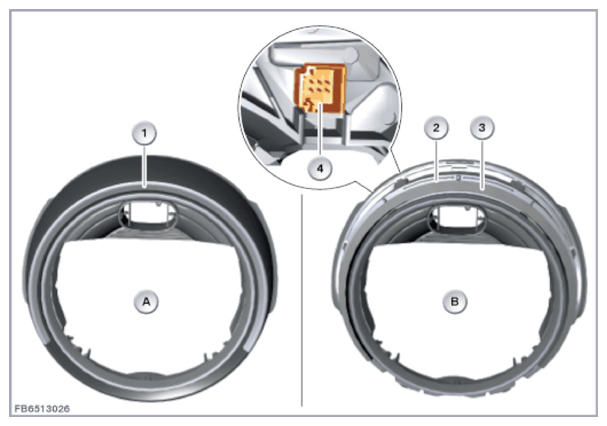

| Item | Explanation |
|---|---|
| A | Central instrument cover |
| B | Central instrument |
| 1 | Trim |
| 2 | Central instrument housing |
| 3 | Ring-shaped lighting with LEDs |
| 4 | six pin plug connection |
