Functional description
The central locking button of the driver's door is realized as a rocker.
- 1 button at top for unlocking
- 1 button at bottom for locking
As a result it is always clear which function is activated for the corresponding keystroke.
The driver's door is also unlocked by pulling the door opener.
The switching functions are realized through rubber mats.

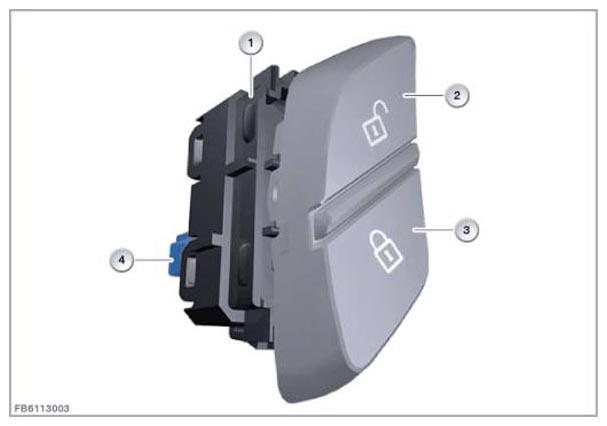

| Item | Explanation |
|---|---|
| 1 | Central locking button |
| 2 | Unlock button |
| 3 | Lock button |
| 4 | 4 pin plug connection |
