M/T Torque Data

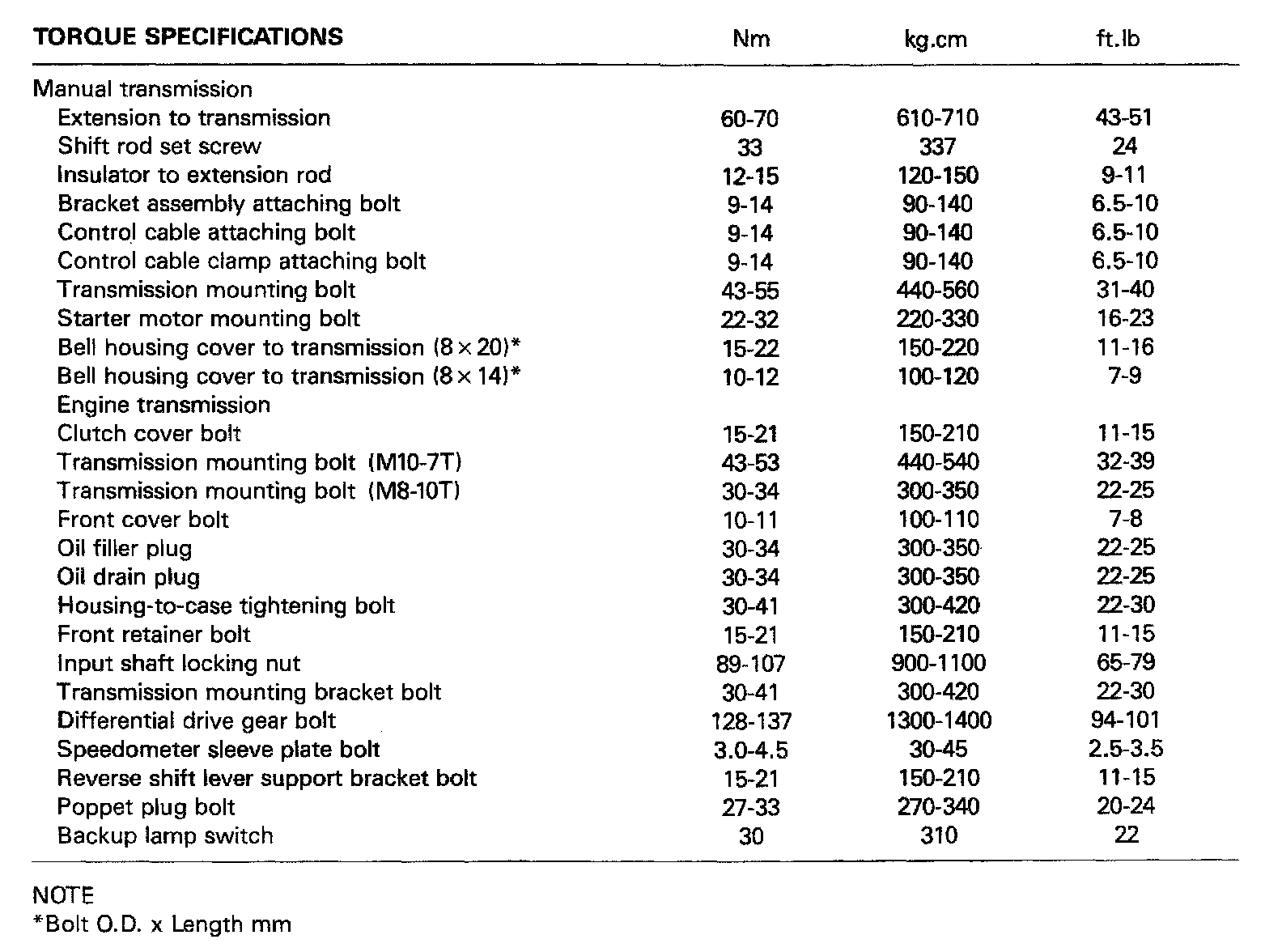

4-spd M/T / 5-spd M/T, Clutch Torque:

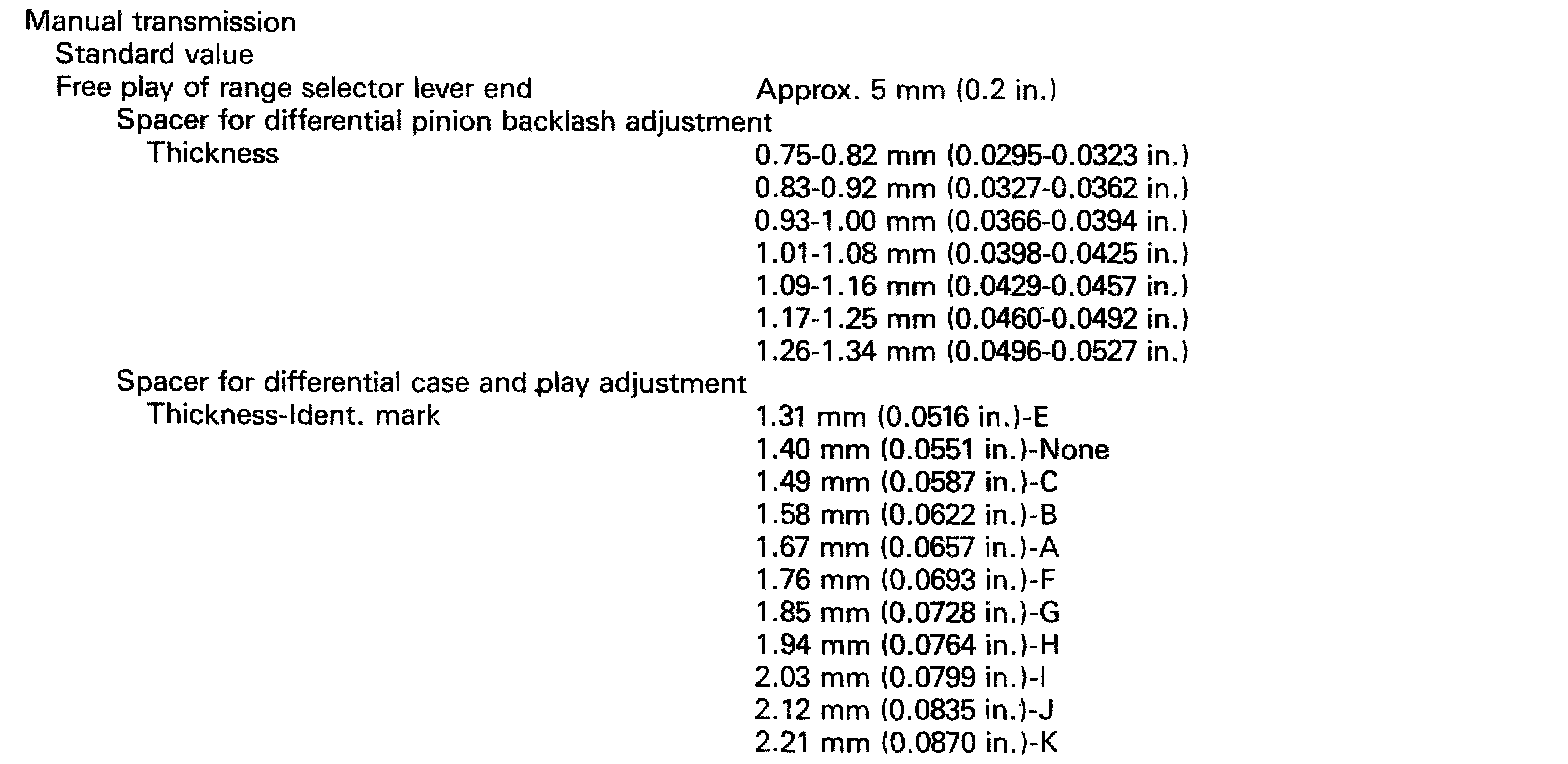

4/5-spd M/T, Standard Value Differential Thickness:





4/5-spd M/T, Transmission Torque:
